TE ConnectivitySwitzerland

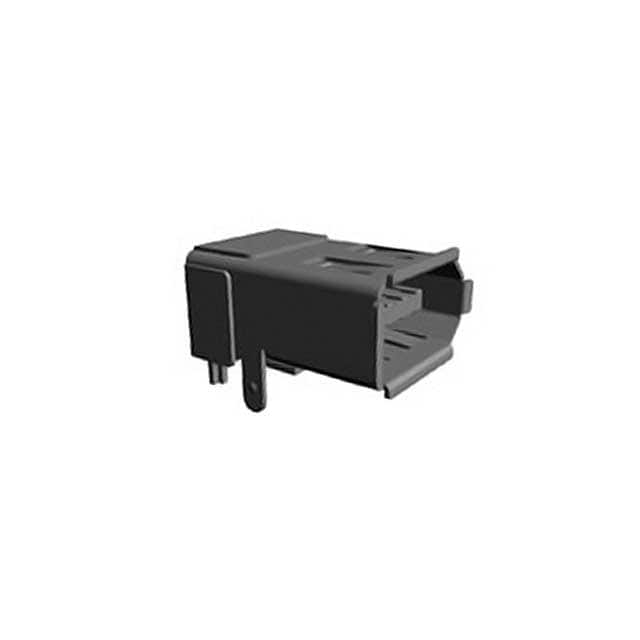

CONN RCP IEEE1394 FIREWIR SMD RA
All alternatives
View full reportTechnical parameters
Key specs
Positions6
GenderFemale
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage - Rated | - |
| Environment and package | |
| Mounting Feature | Horizontal |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Operating Temperature | - |
| Package | Tube |
| Other | |
| Connector Type | Firewire (IEEE 1394) |
| Contact Finish | Gold |
| Features | Board Guide |
| Gender | Receptacle |
| Ingress Protection | - |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | - |
| Mfr | TE Connectivity AMP Connectors |
| Number of Contacts | 6 |
| Number of Ports | 1 |
| Product Status | Obsolete |
| Series | - |
| Shell/Shielding Material | Phosphor Bronze, Steel |
| Shielding | - |
| Specifications | - |
| Termination | Solder |
Documents
No documents are linked to this part yet.
