TE ConnectivitySwitzerland

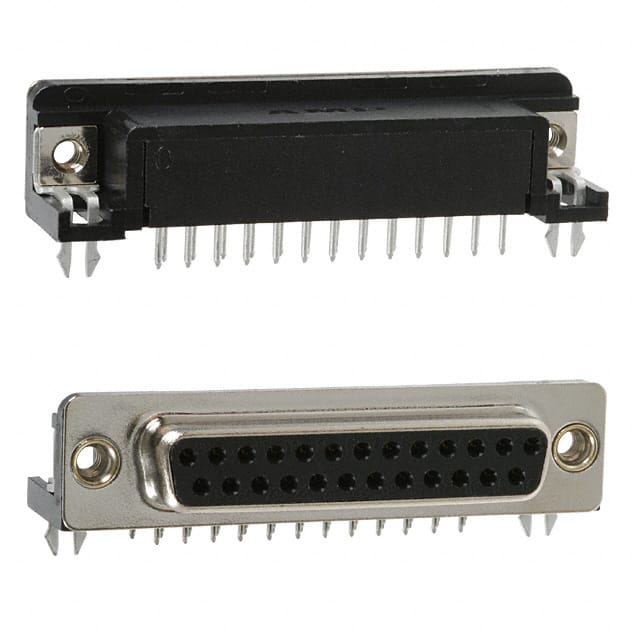

CONN D-SUB RCPT 25POS R/A SLDR
All alternatives
View full reportTechnical parameters
Key specs
Positions25
Rows2
GenderFemale
Current rating2 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 2A |
| Voltage Rating | 250V |
| Environment and package | |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Shell Size, Connector Layout | 3 (DB, B) |
| Other | |

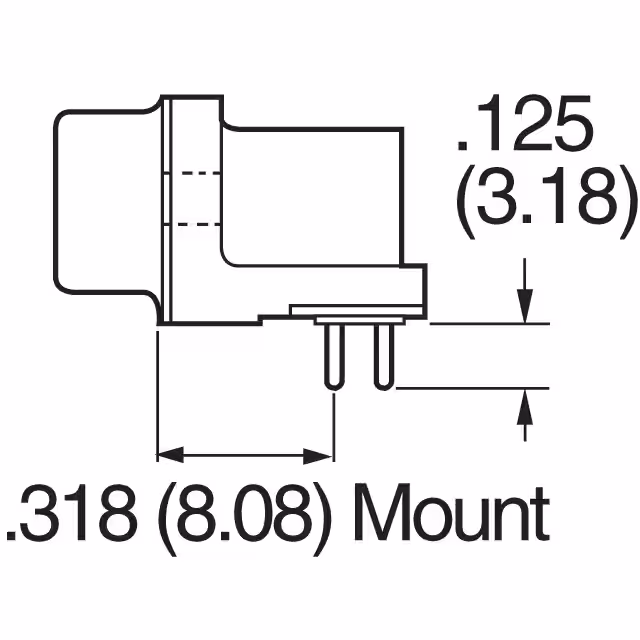

| Backset Spacing | 0.318" (8.08mm) |
| Base Product Number | 1734350 |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | - |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Board Lock |
| Flange Feature | Housing/Shell (4-40) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Product Status | Obsolete |
| Series | AMPLIMITE HD-20 |
| Shell Material, Finish | Steel, Nickel Plated |
| Termination | Solder |
| Wire Gauge | - |
