172224-24
AmphenolUnited States

172224-24

ActiveCoaxial Connector (RF) Assemblies

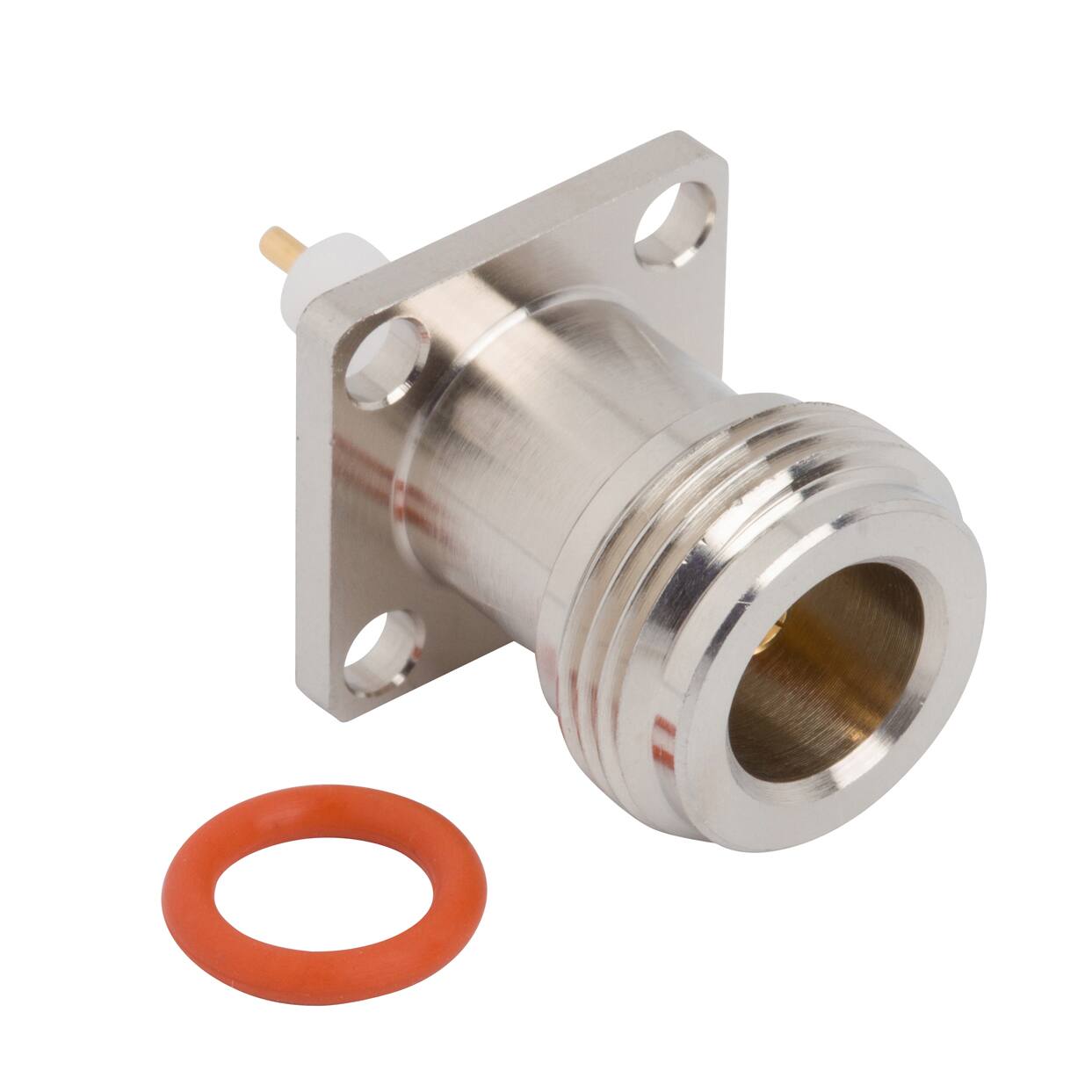

N PANEL RECEPTACLE JACK, EXTENDE

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Connector styleType N
GenderFemale
Impedance50 Ω
Max frequency11 GHzMax
AC and DC characteristics
Frequency - Max11 GHz
Impedance50Ohm
Environment and package
Mounting FeatureFlange
Mounting TypePanel Mount
Operating Temperature-65°C~165°C
PackageBulk
Other
Base Product Number172224
Body FinishWhite Bronze
Body MaterialBrass
Cable Group-
Center Contact MaterialPhosphor Bronze
Center Contact PlatingGold
Connector StyleN Type
Connector TypeJack, Female Socket
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeThreaded
FeaturesExtended Insulation
Housing ColorSilver
Includes2 pcs - 1 Connector, 1 Gasket
Ingress Protection-
Insertion Loss-
Mating Cycles500
MfrAmphenol RF
Number of Ports1
Product StatusActive
Series-
Shield TerminationSolder
