172201-10
AmphenolUnited States

172201-10

Active

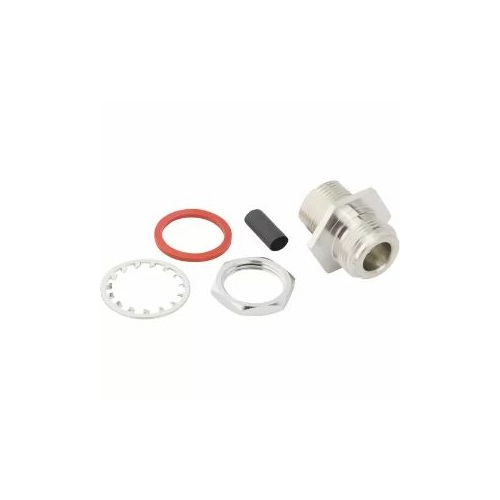

N-Type Straight Solder Cup Jack Round Flange 50 Ohm

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

AC and DC characteristics
Frequency (Max GHz)11
Impedance (Ohms)50
Environment and package
Mil QualifiedNot Mil Qualified
Panel Mounting FeatureRound Flange
Size CategoryStandard
Temp (Max Degrees Celsius)85
Temp (Min Degrees Celsius)-40
Other
AttributesBody Finish
Body FinishWhite Bronze
Body MaterialBrass
Contact FinishGold
Contact MaterialPhosphor Bronze
Contact TerminationSolder
Country of OriginCN
Coupling MechanismThreaded
DetailsWhite Bronze
Document Title172201-10 PDF Customer Drawing (Size: 55.7 KB)
ECCNEAR99
GenderJack
HTS Code8536.69.4010
Insulator MaterialPTFE
IP RatingNot Rated
IsolatedNo
Low PIMNo
Mating Cycles (Min)500
Non MagneticContains Magnetic Materials
OrientationStraight
PFASContains PFAS
Ports1 (Single Port)
Publish Date5/7/2026
Termination StyleSolder Cup
Thread DirectionStandard
Typepdf
Unit Weight (Grams)24.447
