AmphenolUnited States

172169RP

Active

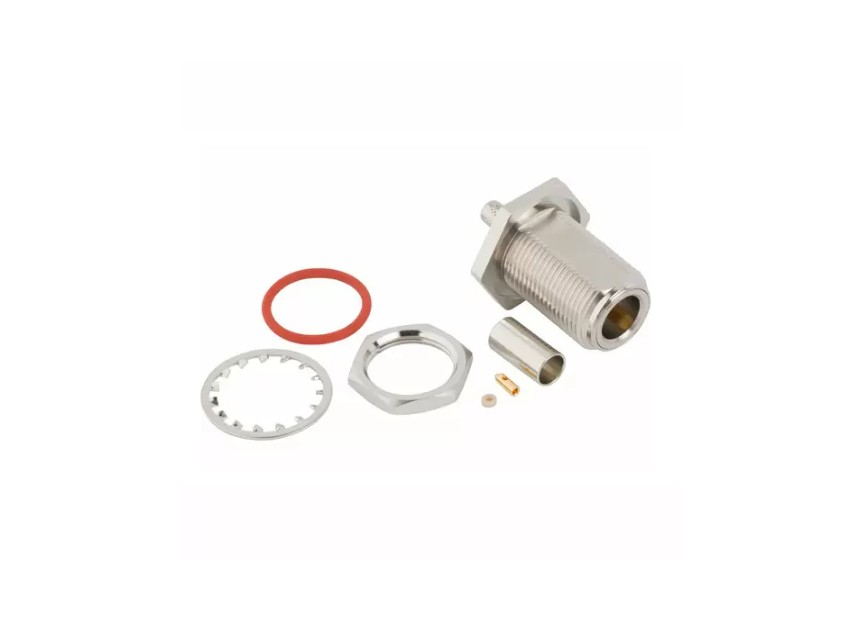

RP-N-Type Panel Mount Jack 4-Hole Flange 50 Ohm

See alternatives Ask AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

AC and DC characteristics
Impedance (Ohms)	50
Environment and package
Mil Qualified	Not Mil Qualified
Panel Mounting Feature	4-Hole Flange
Size Category	Standard
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Other
Attributes	Body Finish
Body Finish	White Bronze
Body Material	Brass
Cable Type (Terminates To)	0.085-inch Semi-Rigid, 0.086-inch Semi-Rigid, 0.085-inch Conformable, 0.086-inch Conformable, RG-405, Times Tflex 405, Belden 1671A
California Prop 65	California Residents see Prop 65 Warning
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Termination	Solder
Country of Origin	CN
Coupling Mechanism	Threaded
Details	White Bronze
Document Title	172169RP PDF Customer Drawing (Size: 73.5 KB)
ECCN	EAR99
Gender	Jack
HTS Code	8536.69.4010
Insulator Material	PTFE
IP Rating	Not Rated
Isolated	No
Low PIM	No
Mating Cycles (Min)	500
Non Magnetic	Contains Magnetic Materials
Orientation	Straight
PFAS	Contains PFAS
Ports	1 (Single Port)
Publish Date	5/7/2026
Status	Under Review
Termination Style	Cable - Solder
Thread Direction	Standard
Type	pdf
