172153
AmphenolUnited States

172153

ActiveCoaxial Connector (RF) Assemblies

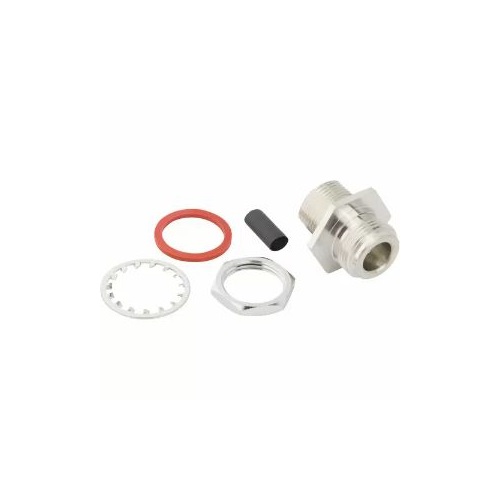

CONN N JACK STR 50 OHM SOLDER

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Connector styleType N
GenderFemale
Impedance50 Ω
Max frequency11 GHzMax
Power
Voltage Rating1500 V
AC and DC characteristics
Frequency - Max11 GHz
Impedance50Ohm
Environment and package
Mounting FeatureBulkhead - Front Side Nut
Mounting TypePanel Mount
Operating Temperature-65°C~165°C
PackageBag
Other
Base Product Number1721
Body FinishWhite Bronze
Body MaterialBrass
Cable GroupRG-401 (.250" Semi Rigid)
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleN Type
Connector TypeJack, Female Socket
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeThreaded
Features-
Housing ColorSilver
Includes7 pcs - 1 Connector, 1 Contact, 1 Gasket, 1 Insulator, 1 Lockwasher, 2 Nuts
Ingress ProtectionWeatherproof
Insertion Loss0.15dB
Mating Cycles500
MfrAmphenol RF
Number of Ports1
Product StatusActive
Series-
Shield TerminationSolder
