TE ConnectivitySwitzerland

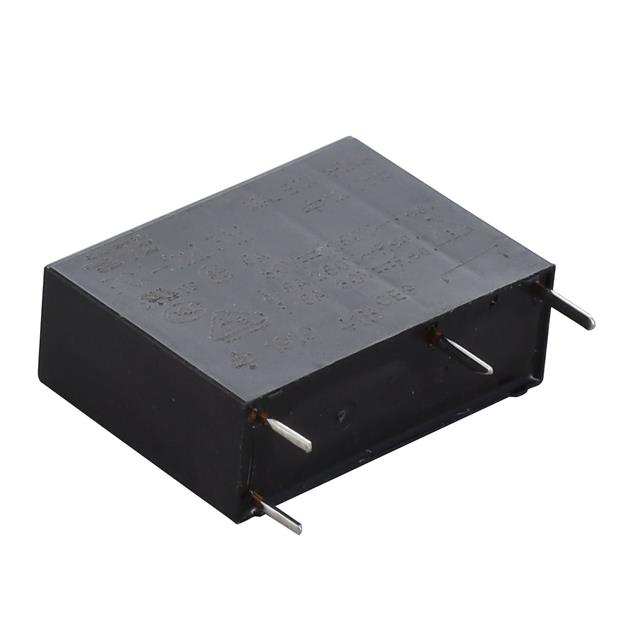

RELAY GEN PURPOSE SPST 5A 12V
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage12 V
Contact formSPST-NO
Contact current5 AMax
Switching voltage250 VMax
| Power | |
|---|---|
| Coil Current | 16.7 mA |
| Coil Voltage | 12VDC |
| Contact Rating (Current) | 5 A |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Switching Voltage | 250VAC, 30VDC - Max |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tray |
| Other | |
| Base Product Number | PCJ-112 |
| Coil Insulation | Class A |
| Coil Resistance | 720 Ohms |
| Coil Type | Non Latching |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Features | - |
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Operate Time | 10 ms |
| Product Status | Obsolete |
| Relay Type | General Purpose |
| Release Time | 4 ms |
| Seal Rating | Sealed - Flux Protection |
| Series | PCJ, OEG |
| Termination Style | PC Pin |
