AmphenolUnited States

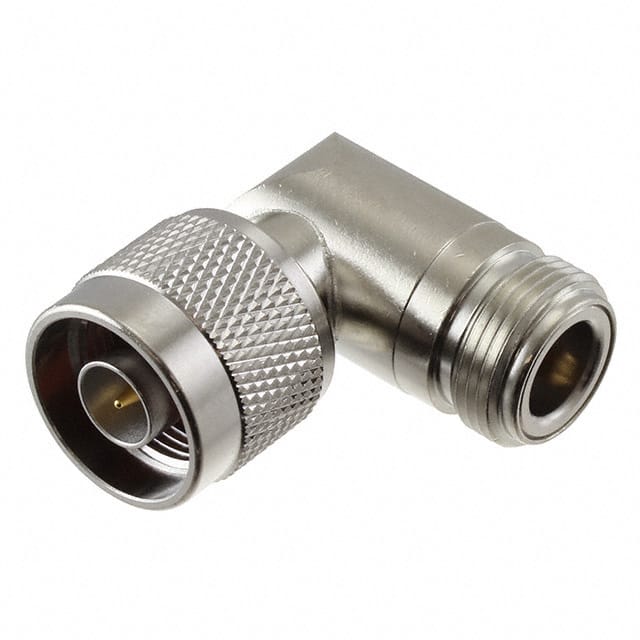

CONN ADAPT PLUG TO JACK N 50 OHM
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency - Max | 11 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Operating Temperature | - |
| Package | Bag |
| Other | |
| Adapter Series | N to N |
| Adapter Type | Plug to Jack |
| Base Product Number | 1721 |
| Body Finish | White Bronze |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Center Gender | Female to Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | N Plug, Male Pin |
| Convert To (Adapter End) | N Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Threaded |
| Features | - |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | 0.20dB |
| Mating Cycles | - |
| Mfr | Amphenol RF |
| Product Status | Active |
| Series | - |
| Style | Right Angle |
