172124
AmphenolUnited States

172124

ActiveCoaxial Connector (RF) Adapters

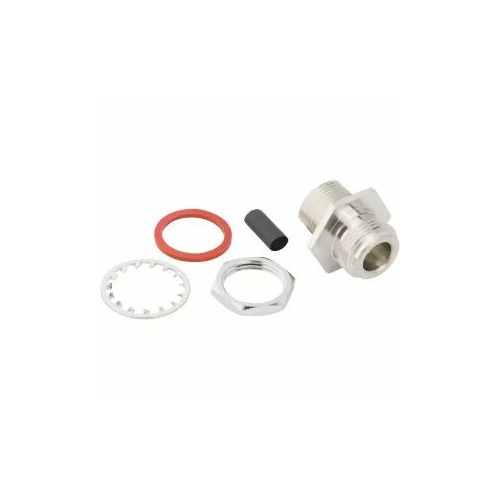

CONN ADAPT JACK-JACK N 50 OHM

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

AC and DC characteristics
Frequency - Max11 GHz
Impedance50 Ohms
Environment and package
Mounting FeatureBulkhead
Mounting TypePanel Mount
Operating Temperature-65°C ~ 165°C
PackageBag
Other
Adapter SeriesN to N
Adapter TypeJack to Jack
Base Product Number1721
Body FinishWhite Bronze
Body MaterialBrass
Center Contact MaterialPhosphor Bronze
Center Contact PlatingGold
Center GenderFemale to Female
Conversion TypeSame Series
Convert From (Adapter End)N Jack, Female Socket
Convert To (Adapter End)N Jack, Female Socket
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeThreaded, Threaded
Features-
Includes4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut
Ingress Protection-
Insertion Loss-
Mating Cycles-
MfrAmphenol RF
Product StatusActive
Series-
StyleStraight
