AmphenolUnited States

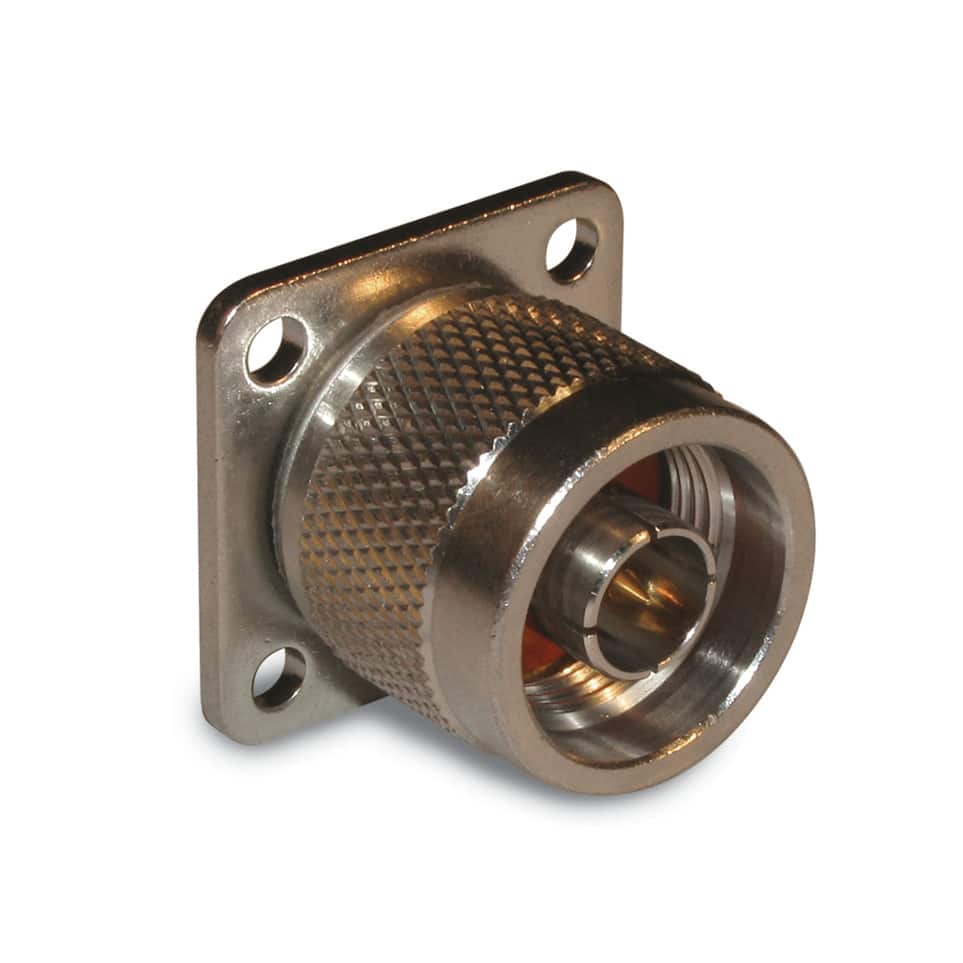

N PANEL RECEPTACLE PLUG
All alternatives
View full reportTechnical parameters
Key specs
Connector styleType N
GenderMale
| AC and DC characteristics | |
|---|---|
| Impedance | - |
| Environment and package | |
| Mounting Feature | Flange |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Base Product Number | 1721 |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | - |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull |
| Features | - |
| Housing Color | Silver |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 500 |
| Mfr | Amphenol RF |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Solder |
