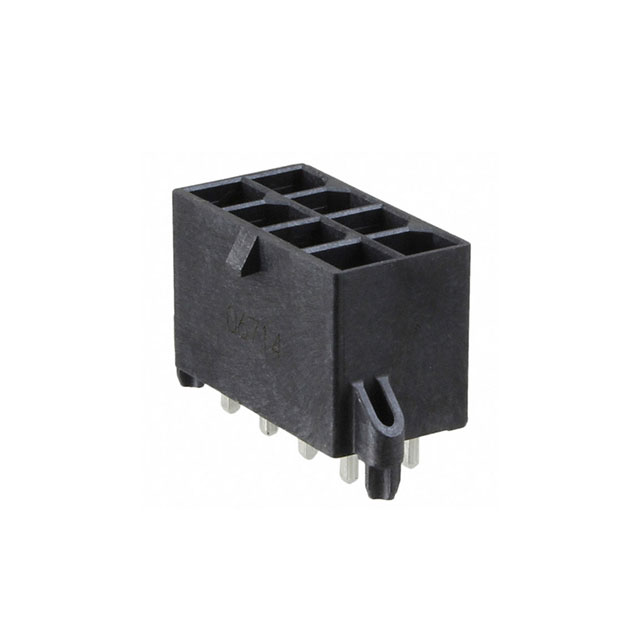

CONN HEADER VERT 8POS 5.7MM
All alternatives
View full reportTechnical parameters
Key specs
Positions8
Rows2
Pitch5.7 mm
GenderMale
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | 0.583" (14.80mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Tray |
| Other | |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Base Product Number | 172065 |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Length - Mating | - |
| Contact Length - Post | 0.147" (3.73mm) |
| Contact Material | Copper |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | Board Guide, Glow Wire Compliant |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Molex |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Overall Contact Length | - |
| Pitch - Mating | 0.224" (5.70mm) |
| Product Status | Active |
| Row Spacing - Mating | 0.224" (5.70mm) |
| Series | Mega-Fit |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
