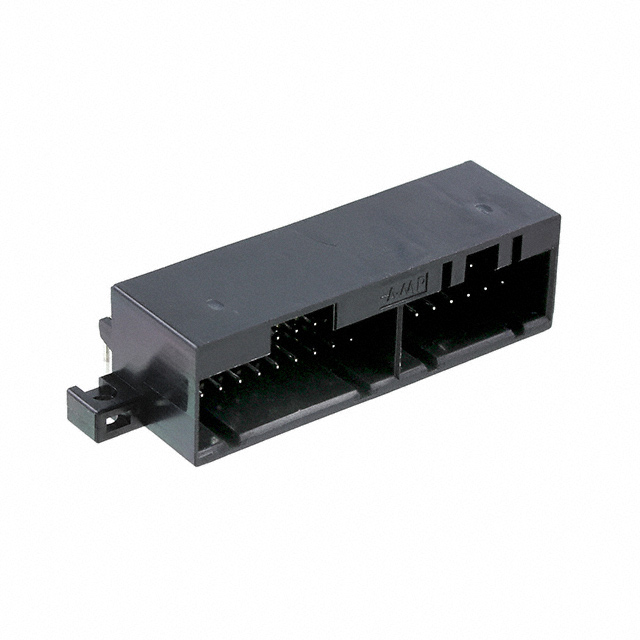

CONN HEADER R/A 36POS 3MM
All alternatives
View full reportTechnical parameters
Key specs
Positions36
Rows2
Pitch3 mm
GenderMale
Current rating5 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 5A |
| Voltage Rating | 250VAC, 350VDC |
| Environment and package | |
| Insulation Height | 0.713" (18.10mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -30°C ~ 105°C |
| Package | Tray |
| Other | |
| Applications | General Purpose |
| Base Product Number | 172023 |
| Connector Type | - |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish Thickness - Post | - |
| Contact Length - Mating | 0.335" (8.51mm) |
| Contact Length - Post | 0.157" (4.00mm) |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | Mounting Flange |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 36 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Overall Contact Length | - |
| Pitch - Mating | 0.118" (3.00mm) |
| Product Status | Active |
| Row Spacing - Mating | 0.181" (4.60mm) |
| Series | DLI (Dual Line Interlock) |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
