WeidmüllerGermany

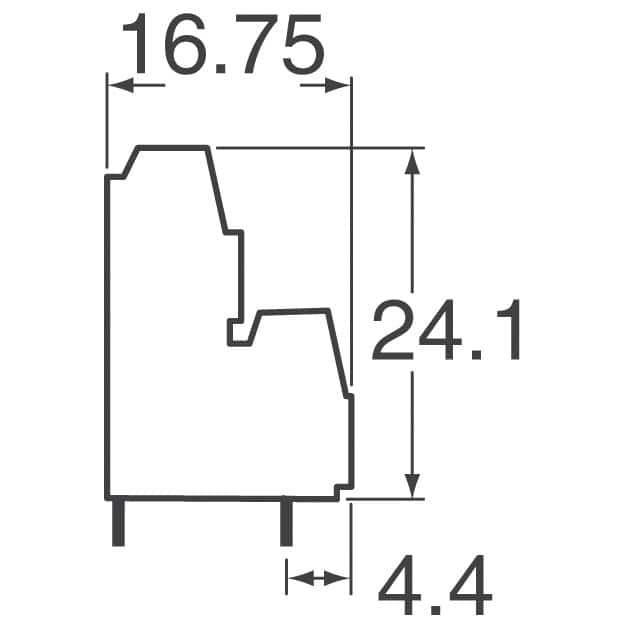

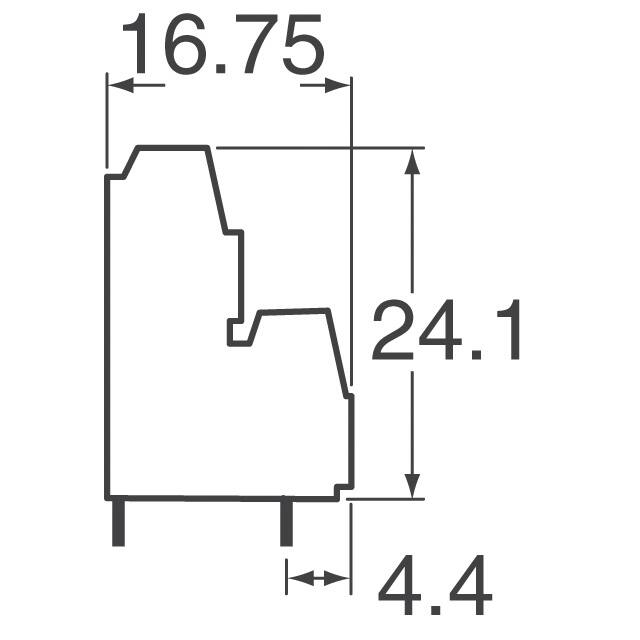

TERM BLK 12P SIDE ENT 3.5MM PCB
All alternatives
View full reportTechnical parameters
Key specs
Pitch3.5 mm
| Power | |
|---|---|
| Current | 10 A |
| Voltage | 300 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C~100°C |
| Package | Bulk |
| Other | |
| Clamp Material - Plating | - |
| Color | Black |
| Contact Material - Plating | Copper Tin Alloy - Tin Plated |
| Features | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Mating Orientation | Horizontal with Board |
| Mfr | Weidmüller |
| Number of Levels | 2 |
| Pitch | 0.138" (3.50mm) |
| Positions Per Level | 12 |
| Product Status | Active |
| Screw Material - Plating | - |
| Screw Thread | M2 |
| Series | Omnimate LM |
| Torque - Screw | 0.2-0.25 Nm (1.7-2.2 Lb-In) |
| Wire Gauge | 14-22 AWG |
| Wire Termination | Screw - Clamping Yoke, Tension Sleeve |
