1719

Active

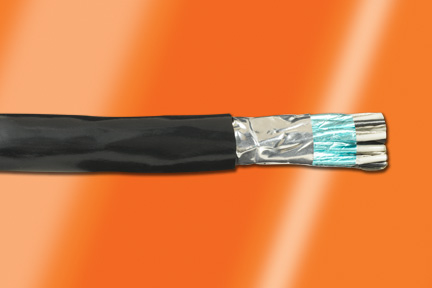

Alpha Wire 20 AWG, 8 Conductor Communication Cable provides precise signal transmission for computer and control applications

All alternatives

Power
1) Voltage Rating	600 V RMS
Environment and package
1) Temperature Range	-20 to 60°C
Other
1) CE	EU Low Voltage Directive 2014/35/EU
(1) Color Code	Alpha Wire Color Code H
1) Component 1	8 x 1 COND
2) Bend Radius	10X Cable Diameter
2) Cable Assembly	8 Components Cabled
2) Capacitance	22.4 pF/ft @1 kHz, Nominal Conductor-to-Conductor
3) California Proposition 65	This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more detail.
3) Ground Capacitance	40 pF/ft @1 kHz, Nominal
3) Pull Tension	73 lbs. (max.)
3) Shield	Tinned Copper BRAID Shield, 85% Coverage (min.)
4) Inductance	0.19 μH/ft, Nominal
5) Conductor DCR	11.1 Ω/1000ft @20°C, Nominal
6) OA Shield DCR	2.6 Ω/1000ft @20°C, Nominal
a) 1000 FT	18 x 14.25 x 8 Continuous Length
a) Color(s)	SLATE
a) Twists	3.7 Twists/foot (min.)
b) 500 FT	12 x 10.5 x 5 Continuous Length
b) Orientation	Components to be arranged from INSIDE LAYER-to-OUTSIDE LAYER
b) Print	*ALPHA WIRE- P/N 1719 CE ROHS * = Factory Code**
c) 100 FT	10.5 x 5 x 3.5 Continuous Length
c) Core Wrap	Clear Mylar Tape, 25% Overlap (min.)
Color	BLACK
Cond	1
Electrical Properties	(For Engineering purposes only)
Packaging	Flange x Traverse x Barrel (inches)
