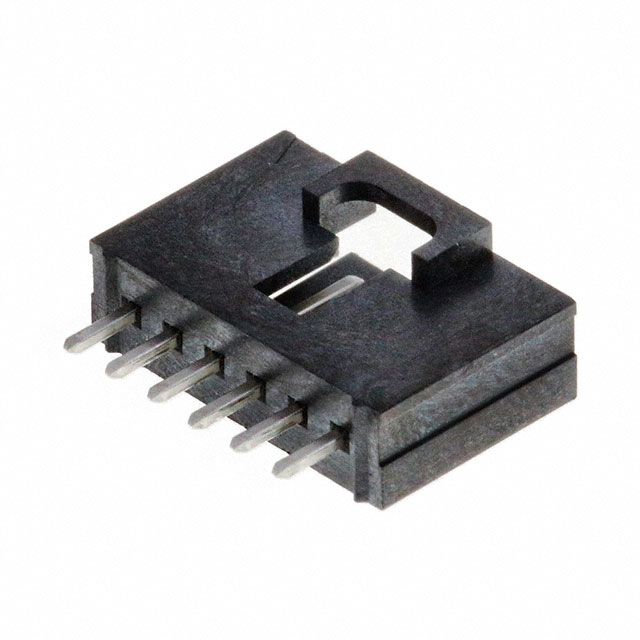

CONN HEADER VERT 6POS 2.54MM
All alternatives
View full reportTechnical parameters
Key specs
Positions6
Rows1
Pitch2.54 mm
GenderMale
Current rating3 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 3A |
| Voltage Rating | 250V |
| Environment and package | |
| Insulation Height | 0.465" (11.80mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Package | Tube |
| Other | |
| Applications | General Purpose |
| Base Product Number | 171971 |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | 0.130" (3.30mm) |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Polarizing Key |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Molex |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Overall Contact Length | - |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Row Spacing - Mating | - |
| Series | SL 171971 |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
