Phoenix ContactGermany

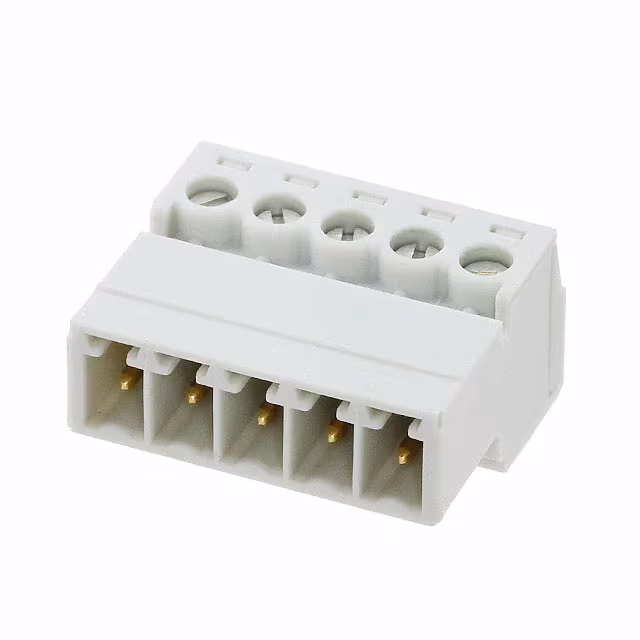

TERM BLOCK PLUG 5POS STR 3.81MM
All alternatives
View full reportTechnical parameters
Key specs
Positions5
Pitch3.81 mm
| Power | |
|---|---|
| Current - IEC | 8A |
| Current - UL | 8 A |
| Voltage - IEC | 320 V |
| Voltage - UL | 300 V |
| Environment and package | |
| Insulation Height | 0.437" (11.10mm) |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | - |
| Package | Bulk |
| Screw Size | M2 |
| Other | |
| Color | Gray |
| Contact Material | - |
| Contact Mating Finish | Gold |
| Contact Tail Length | - |
| Features | - |
| Header Orientation | - |
| Housing Material | Polyamide (PA), Nylon |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Phoenix Contact |
| Number of Levels | 1 |
| Number of Positions | 5 |
| Pitch | 0.150" (3.81mm) |
| Plug Wire Entry | 180° |
| Positions Per Level | 5 |
| Product Status | Active |
| Series | COMBICON IMC |
| Termination Style | Screw - Rising Cage Clamp |
| Torque - Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
| Type | Plug, Male Pins |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.14-1.5mm² |
| Wire Strip Length | 7mm |
