1710

Active

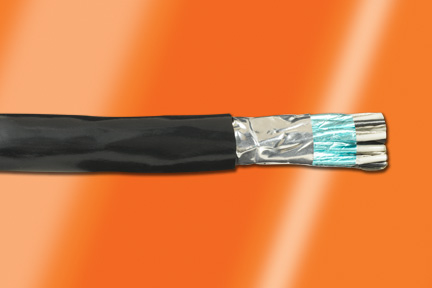

Alpha Wire 22 AWG, 2 Conductor Communication Cable provides precise signal transmission for computer and control applications

All alternatives

Power
1) Voltage Rating	1000 V RMS
AC and DC characteristics
2) Characteristic Impedance	91 Ω
Environment and package
1) Temperature Range	-20 to 60°C
Other
1) CE	EU Low Voltage Directive 2014/35/EU
1) Component 1	2 x 1 COND
2) Bend Radius	10X Cable Diameter
2) Cable Assembly	2 Components Cabled
3) California Proposition 65	This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more detail.
3) Inductance	0.23 μH/ft, Nominal
3) Pull Tension	17.1 lbs. (max.)
3) Shield	Tinned Copper BRAID Shield,90% Coverage (min.)
4) Mutual Capacitance	17 pF/ft @1 kHz, Nominal
5) Ground Capacitance	30 pF/ft @1 kHz, Nominal
6) Conductor DCR	15.2 Ω/1000ft @20°C, Nominal
7) OA Shield DCR	4.3 Ω/1000ft @20°C, Nominal
a) 1000 FT	13.5 x 10 x 4 Continuous length
a) Color(s)	SLATE
a) Twists	5.3 Twists/foot (min.)
b) 500 FT	12 x 5.94 x 5 Continuous length
b) Orientation	Components to be arranged from INSIDE LAYER-to-OUTSIDE LAYER
b) Print	*ALPHA WIRE- P/N 1710 CE ROHS * = Factory Code**
c) 100 FT	10.5 x 5 x 3.5 Continuous length
c) Core Wrap	Clear Mylar Tape, 25% Overlap (min.)
Color	WHITE
Cond	1
Electrical Properties	(For Engineering purposes only)
Packaging	Flange x Traverse x Barrel (inches)
