TE ConnectivitySwitzerland

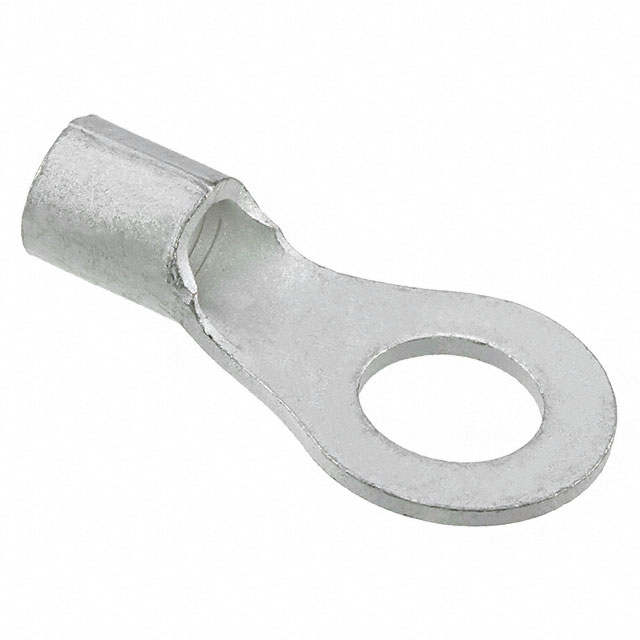

CONN RING CIRC 8AWG M8 CRIMP
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Bulk |
| Stud/Tab Size | M8 Stud |
| Other | |
| Base Product Number | 170729 |
| Color | - |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Non-Insulated |
| Insulation Diameter | - |
| Length - Overall | 1.181" (30.00mm) |
| Material - Insulation | - |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Obsolete |
| Series | Solistrand |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.047" (1.19mm) |
| Width - Outer Edges | 0.591" (15.00mm) |
| Wire Gauge | 8 AWG |
