Phoenix ContactGermany

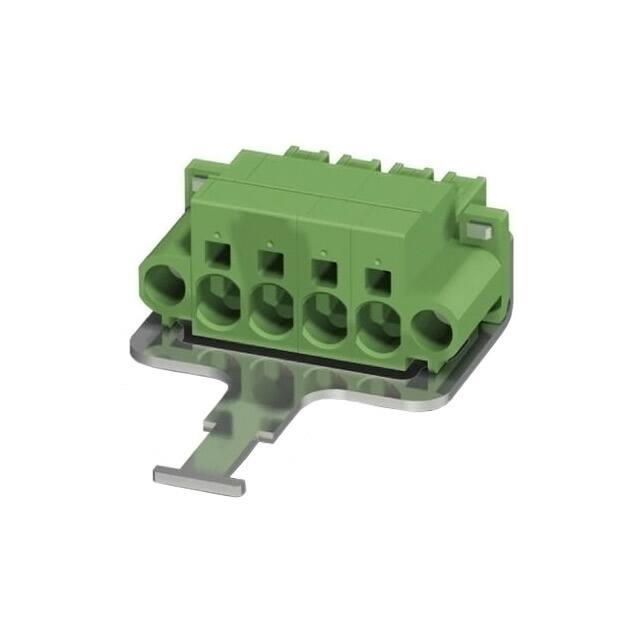

TERM BLOCK PLUG 4POS STR 7.62MM
All alternatives
View full reportTechnical parameters
Key specs
Positions4
Pitch7.62 mm
| Power | |
|---|---|
| Current - IEC | 41A |
| Current - UL | 35 A |
| Voltage - IEC | 1 kV |
| Voltage - UL | 600 V |
| Environment and package | |
| Insulation Height | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | - |
| Package | Bulk |
| Screw Size | - |
| Other | |
| Color | Green |
| Contact Material | - |
| Contact Mating Finish | Tin |
| Contact Tail Length | - |
| Features | Mating Flange, Strain Relief |
| Header Orientation | - |
| Housing Material | Polyamide (PA), Nylon |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Phoenix Contact |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Pitch | 0.300" (7.62mm) |
| Plug Wire Entry | 180° |
| Positions Per Level | 4 |
| Product Status | Active |
| Series | COMBICON SPC |
| Termination Style | Screwless - Push-In Spring |
| Torque - Screw | - |
| Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 8-24 AWG |
| Wire Gauge or Range - mm² | 0.2-10mm² |
| Wire Strip Length | 15mm |
