Phoenix ContactGermany

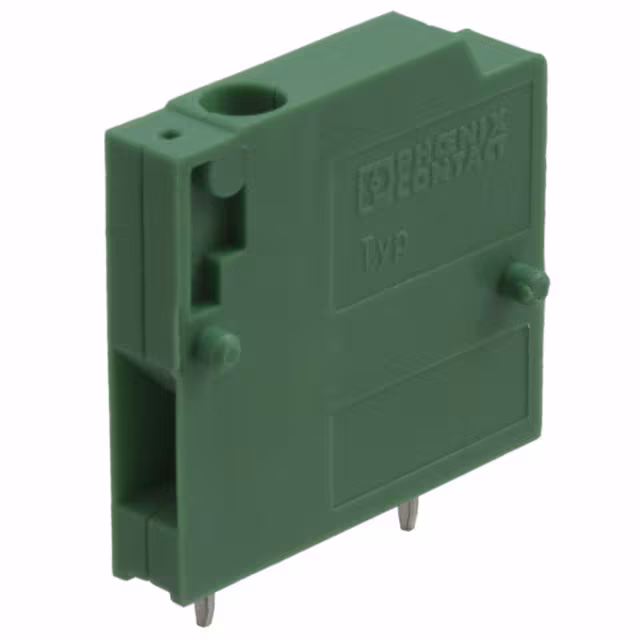

TERM BLOCK 1POS SIDE ENTRY PCB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current | 15 A |
| Voltage | 300 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Clamp Material - Plating | - |
| Color | Green |
| Contact Material - Plating | - |
| Features | Interlocking (Side) |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Horizontal with Board |
| Mfr | Phoenix Contact |
| Number of Levels | 1 |
| Pitch | - |
| Positions Per Level | 1 |
| Product Status | Active |
| Screw Material - Plating | - |
| Screw Thread | M3 |
| Series | COMBICON KDS |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Wire Gauge | 12-28 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
Documents
No documents are linked to this part yet.
