Cornell Dubilier Electronics (CDE)United States

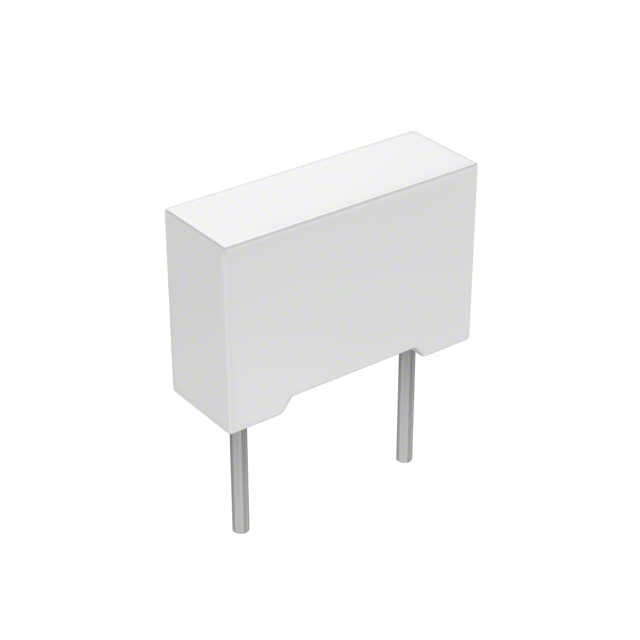

CAP FILM 0.1UF 5% 63VDC RADIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance100 nF
Rated voltage63 V
Tolerance5 %
| Power | |
|---|---|
| Voltage Rating - AC | 40V |
| Voltage Rating - DC | 63V |
| Environment and package | |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~125°C |
| Package | Bulk |
| Package / Case | Radial |
| Size / Dimension | 0.413" L x 0.138" W (10.50mm x 3.50mm) |
| Other | |
| Applications | General Purpose |
| Capacitance | 0.1 µF |
| Dielectric Material | Polyester, Metallized |
| Features | - |
| Lead Spacing | 0.295" (7.50mm) |
| Mfr | Cornell Dubilier Electronics (CDE) |
| Product Status | Obsolete |
| Ratings | - |
| Series | 167 |
| Termination | PC Pins |
| Tolerance | ±5% |
