ConecGermany

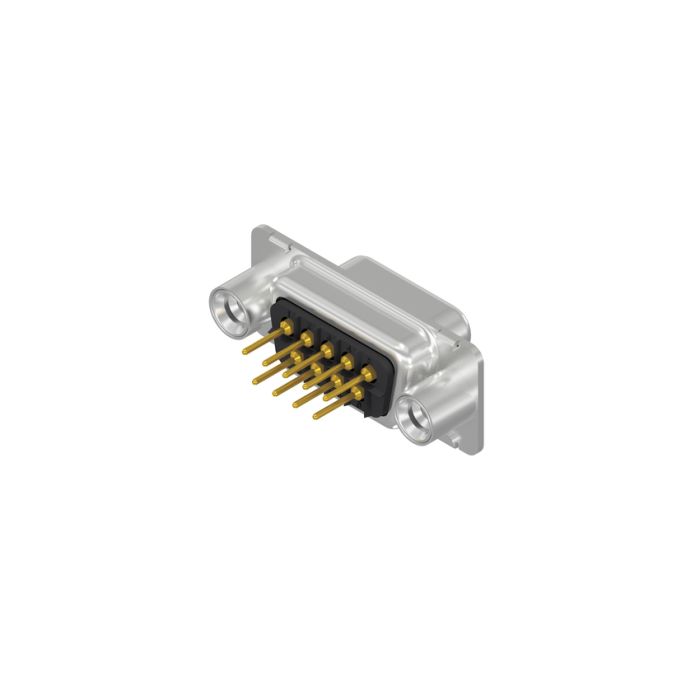

CONN D-SUB RCPT 9POS VERT SLDR
All alternatives
View full reportTechnical parameters
Key specs
Positions9
Rows2
GenderFemale
Current rating7.5 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 125V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~125°C |
| Package | Bulk |
| Shell Size, Connector Layout | 1 (DE, E) |
| Other | |
| Backset Spacing | - |
| Base Product Number | 164A120 |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Contact Form | Machined |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | - |
| Flange Feature | Board Side (4-40) |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Conec |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Product Status | Active |
| Series | 164A |
| Shell Material, Finish | Steel, Tin Plated |
| Termination | Solder |
| Wire Gauge | - |
