WeidmüllerGermany

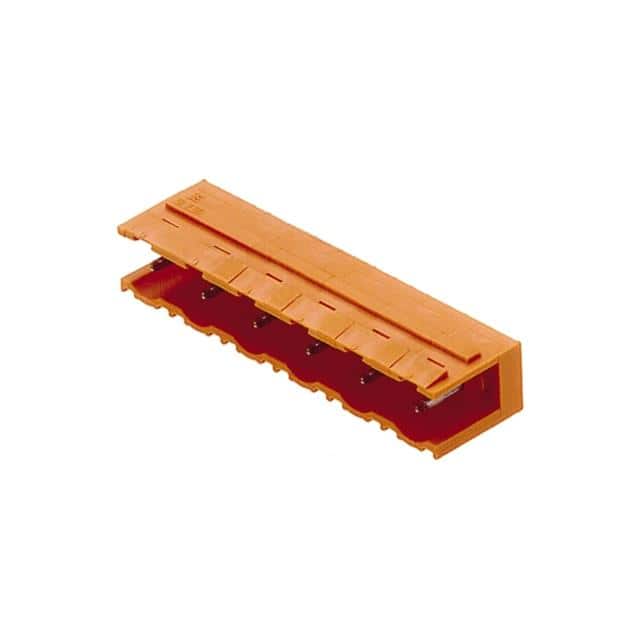

TERM BLOCK HDR 5POS 90DEG 7.5MM
All alternatives
View full reportTechnical parameters
Key specs
Positions5
Pitch7.5 mm
| Power | |
|---|---|
| Current - IEC | 18.5A |
| Current - UL | 15 A |
| Voltage - IEC | 800 V |
| Voltage - UL | 300 V |
| Environment and package | |
| Insulation Height | 0.335" (8.51mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -50°C~100°C |
| Package | Bulk |
| Screw Size | - |
| Other | |
| Color | Orange |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.126" (3.20mm) |
| Features | - |
| Header Orientation | 90°, Right Angle |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Weidmüller |
| Number of Levels | 1 |
| Number of Positions | 5 |
| Pitch | 0.295" (7.50mm) |
| Plug Wire Entry | - |
| Positions Per Level | 5 |
| Product Status | Active |
| Series | Omnimate SL |
| Termination Style | Solder |
| Torque - Screw | - |
| Type | Header, Male Pins, Shrouded (2 Side) |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Wire Strip Length | - |
