Phoenix ContactGermany

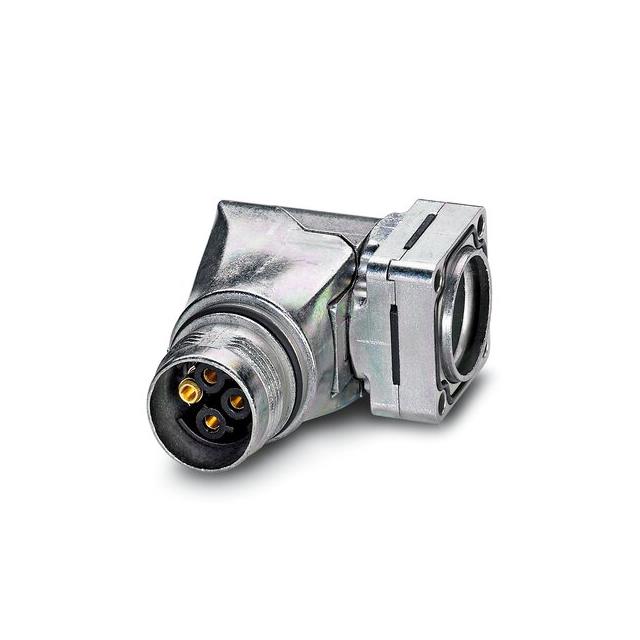

CONN RCP HSG FMAL 7POS PNL MT RA
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Contact Size | 1.0mm |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount, Right Angle |
| Operating Temperature | -40°C ~ 125°C |
| Package | Bulk |
| Shell Size - Insert | M17-7 |
| Shell Size, MIL | - |
| Other | |
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Type | Crimp |
| Fastening Type | Push-Twist |
| Features | Backshell, Rotatable |
| Housing Color | Silver |
| Includes | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | - |
| Mfr | Phoenix Contact |
| Note | Contacts Not Included |
| Number of Positions | 7 (6 + PE) |
| Orientation | N (Normal) |
| Product Status | Last Time Buy |
| Series | ST |
| Shell Finish | - |
| Shell Material | Gadolinium-Zinc |
| Shielding | Shielded |
| Type | For Female Sockets |
