1601710000
WeidmüllerGermany

1601710000

ActiveHeavy Duty Connector Inserts, Modules

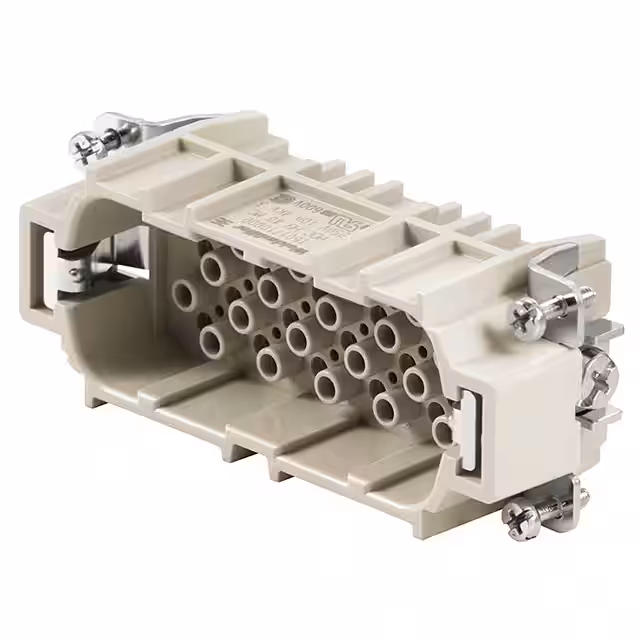

INSERT MALE 40POS+1GND CRIMP

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current Rating (Amps)10A
Voltage Rating250V
Environment and package
Operating Temperature-40°C~125°C
PackageBulk
Size6
Other
Color-
Connector TypeInsert without Contacts
Contact Finish-
Contact Material-
Contact TypeHD
GenderMale
Housing MaterialPolycarbonate (PC), Glass Filled
Material Flammability RatingUL94 V-0
MfrWeidmüller
Number of Positions40+Ground
Product StatusActive
SeriesRockstar® HD
Termination StyleCrimp

Documents

No documents are linked to this part yet.
