方向电子China

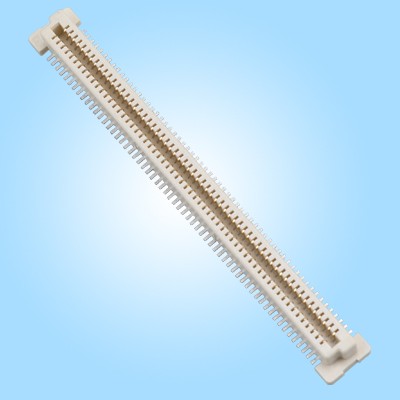

16000-03XXX1_BTB F-SV-1-2x60-P080-H37-03
All alternatives
View full reportTechnical parameters
Key specs
GenderFemale
| Environment and package | |
|---|---|
| Height(mm) | 3.7 |
| Mated Height(mm) | 5~16 |
| Operating Temperature | -40~85℃ |
| UL/RoHS Compliance | Yes |
| Other | |
| Coplanarity | 0.1mm Max |
| Date Rate | Up to 10Gb/s |
| Gender | Receptacle |
| Length(mm) | 53.8 |
| Number of Contact | 120 |
| Number of Row | Double Row |
| Pin Pitch(mm) | 0.8 |
| Width(mm) | 6 |
