HARTINGGermany

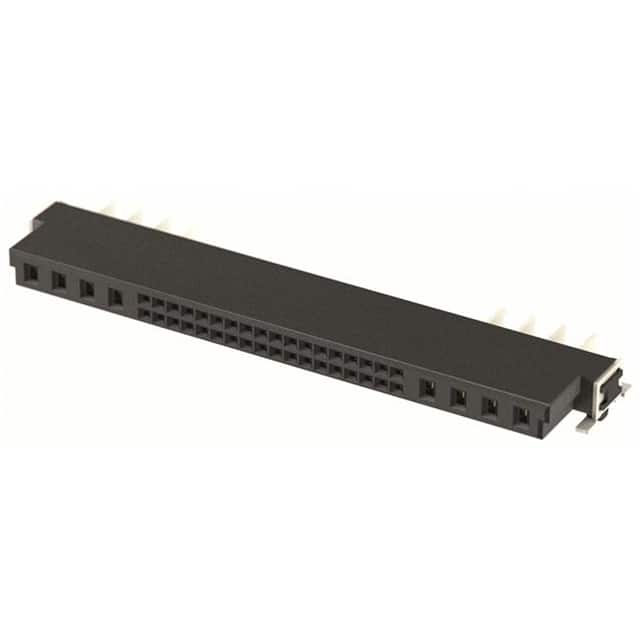

HAR-FLEX HYBRID ANGLED FEMALE, 4
All alternatives
View full reportTechnical parameters
Key specs
Positions20
Rows2
GenderFemale
Current rating22.5 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 22.5A |
| Voltage Rating | 50VAC, 120VDC |
| Environment and package | |
| Insulation Height | 0.144" (3.66mm) |
| Mated Stacking Heights | - |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -55°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Applications | General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish Thickness - Post | - |
| Contact Length - Post | - |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular, Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Features | Board Guide, Solder Retention |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mfr | HARTING |
| Number of Positions | 20 (16 + 4 Power) |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | - |
| Product Status | Active |
| Row Spacing - Mating | - |
| Series | har-flex® |
| Style | Board to Board or Cable |
| Termination | Solder |
