Switchcraft Inc.United States

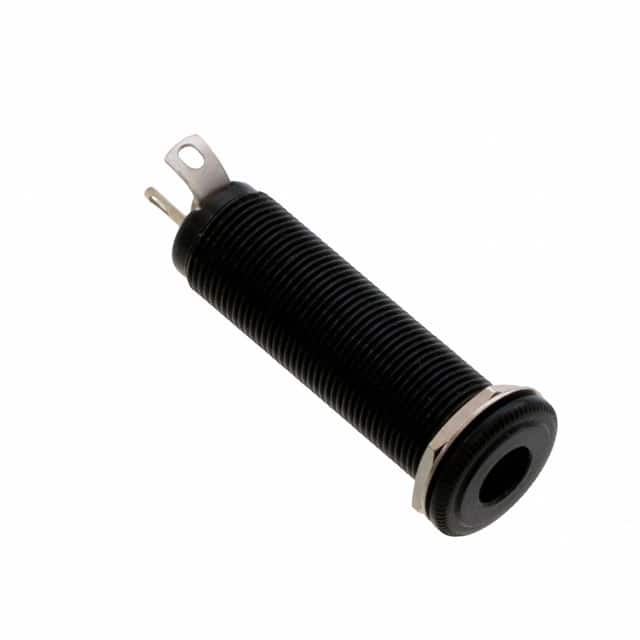

CONN JACK STEREO 6.35MM PNL MNT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | - |
| Environment and package | |
| Mounting Type | Panel Mount |
| Operating Temperature | - |
| Package | Bulk |
| Panel Hole Size | - |
| Thread Size | - |
| Other | |
| Actual Diameter | 0.253" (6.43mm) |
| Base Product Number | - |
| Body Color | Black |
| Body Material | Brass |
| Cable Opening | - |
| Connector Type | Phone Jack |
| Contact Material | Steel |
| Contact Material - Plating | Tin |
| Features | Mounting Hardware, Thread Lock |
| Gender | Female |
| Housing Material | - |
| Includes | 2 pcs - 1 Connector, 1 Nut |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
| Insulation Color | - |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | - |
| Mfr | Switchcraft Inc. |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Product Status | Active |
| Series | E |
| Shielding | Unshielded |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Termination | Solder Eyelet(s) |
