IskraSlovenia

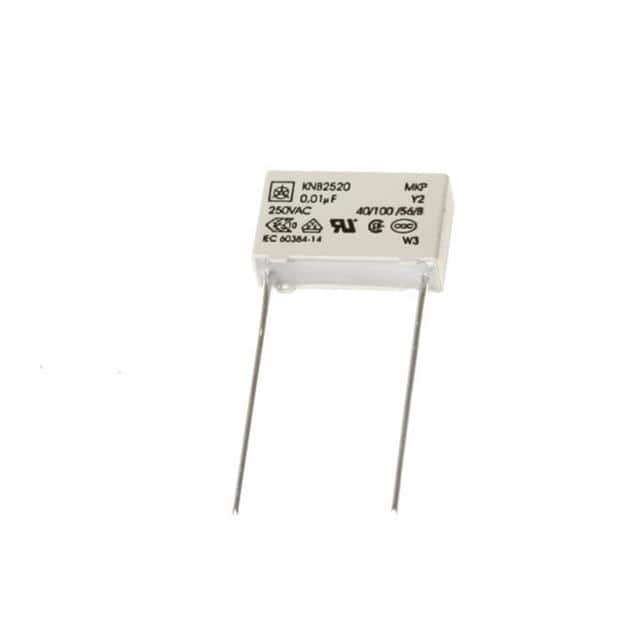

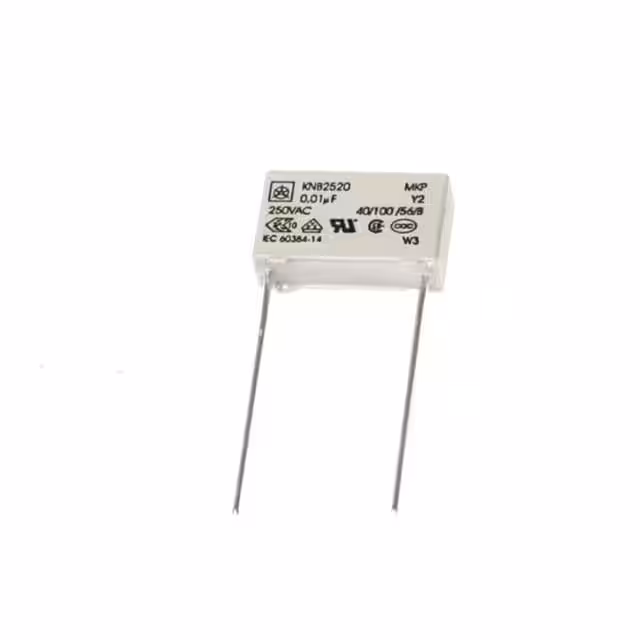

KNB2520 U01 10% 300V L6 R15
All alternatives
View full reportTechnical parameters
Key specs
Capacitance10 nF
Rated voltage680 V
Tolerance10 %
| Power | |
|---|---|
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | 680V |
| Environment and package | |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~100°C |
| Package | Bulk |
| Package / Case | Radial |
| Other | |
| Applications | General Purpose |
| Capacitance | 0.01 µF |
| Dielectric Material | Polypropylene (PP), Metallized |
| Lead Spacing | 0.591" (15.00mm) |
| Mfr | Iskra |
| Product Status | Active |
| Series | KNB2520 |
| Termination | PC Pins |
| Tolerance | ±10% |
