MEC SwitchesDenmark

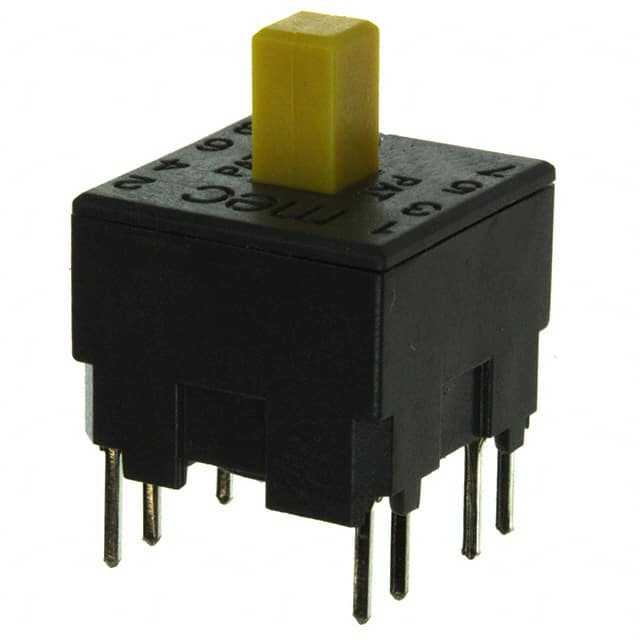

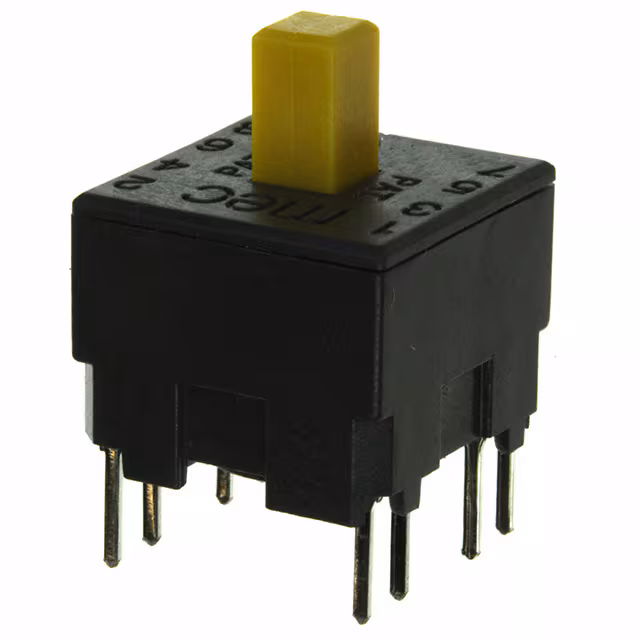

SWITCH PUSH 4PST 0.25A 120V
All alternatives
View full reportTechnical parameters
Key specs
Circuit4PST
Switch functionOn-Mom
Current rating250 mAMax
Voltage rating120 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 250mA (AC) |
| Illumination Voltage (Nominal) | - |
| Voltage Rating - AC | 120 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~75°C |
| Package | Tube |
| Panel Cutout Dimensions | - |
| Other | |
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | 4PST-2NO/2NC |
| Color - Actuator/Cap | Yellow |
| Electrical Life | - |
| Features | - |
| Illumination Type, Color | - |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Mechanical Life | 1,500,000 Cycles |
| Mfr | MEC Switches |
| Product Status | Obsolete |
| Series | Unimec™ |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | PC Pin |
| Type | Standard |
