Phoenix ContactGermany

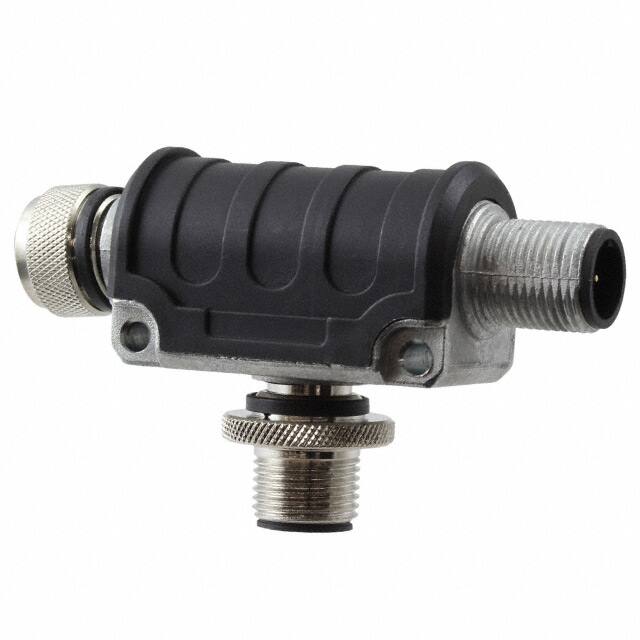

CONN T-ADPT 5P-5/5P M-F/M INLINE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | 30V |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -40°C~80°C |
| Package | Bulk |
| Shell Size - Insert (Convert From) | M12 |
| Shell Size - Insert (Convert To) | M12 |
| Other | |
| Connector Style | Distributor T-Shaped |
| Convert From (Adapter End) | Male Pins |
| Convert To (Adapter End) | Female Sockets (1), Male Pins (1) |
| Fastening Type | Threaded |
| Features | Coupling Nut |
| Housing Color | Black |
| Housing Finish | Nickel |
| Housing Material | Polyurethane (PUR) |
| Includes | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Mfr | Phoenix Contact |
| Number of Positions (Convert From) | 5 |
| Number of Positions (Convert To) | 5 (2) |
| Orientation (Convert From) | B |
| Orientation (Convert To) | B |
| Product Status | Obsolete |
| Series | SAC |
| Shielding | Unshielded |
