API Delevan Inc.United States

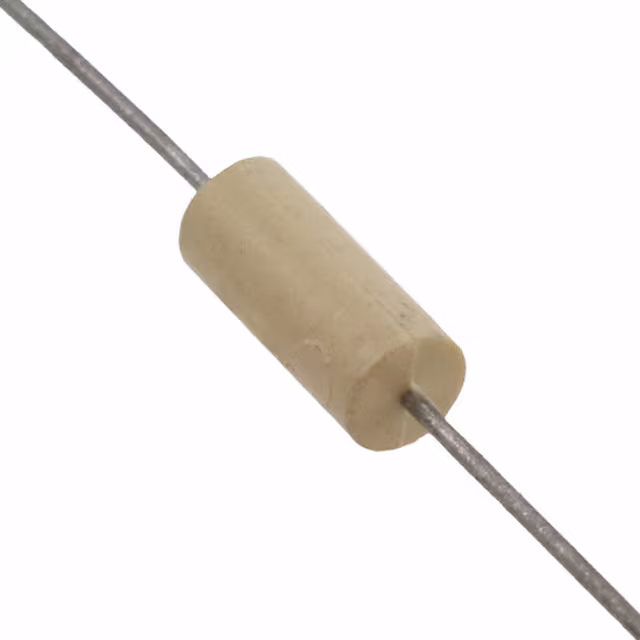

FIXED IND 4.7UH 294MA 2.6 OHM TH
All alternatives
View full reportTechnical parameters
Key specs
Inductance4.7 µH
Rated current294 mAMax
DC resistance2.6 ΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 294 mA |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | 90MHz |
| Inductance Frequency - Test | 7.9 MHz |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Package / Case | Axial |
| Size / Dimension | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) |
| Supplier Device Package | - |
| Other | |
| DC Resistance (DCR) | 2.6Ohm Max |
| Inductance | 4.7 µH |
| Material - Core | Phenolic |
| Mfr | API Delevan Inc. |
| Product Status | Active |
| Q @ Freq | 33 @ 7.9MHz |
| Ratings | - |
| Series | Military, MIL-PRF-M15305, MS18130 |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Type | - |
