Hammond ManufacturingCanada

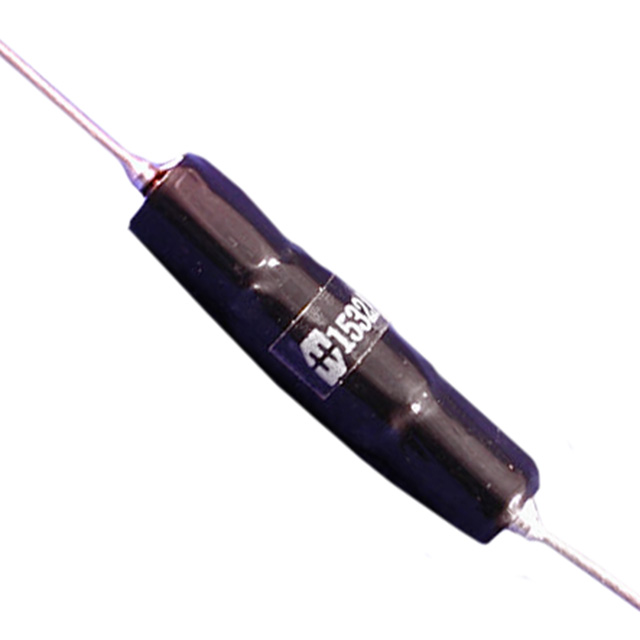

FIXED IND 1MH 160MA 8.6 OHM TH
All alternatives
View full reportTechnical parameters
Key specs
Inductance1 mH
Rated current160 mAMax
DC resistance8.6 ΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 160 mA |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | 2.6MHz |
| Inductance Frequency - Test | 250 kHz |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Bulk |
| Package / Case | Axial |
| Size / Dimension | 0.469" Dia x 0.875" L (11.91mm x 22.22mm) |
| Supplier Device Package | - |
| Other | |
| DC Resistance (DCR) | 8.6Ohm Max |
| Inductance | 1 mH |
| Material - Core | - |
| Mfr | Hammond Manufacturing |
| Product Status | Obsolete |
| Q @ Freq | 83 @ 250kHz |
| Ratings | - |
| Series | 1534 |
| Shielding | Unshielded |
| Tolerance | ±5% |
| Type | Wirewound |
