Würth ElektronikGermany

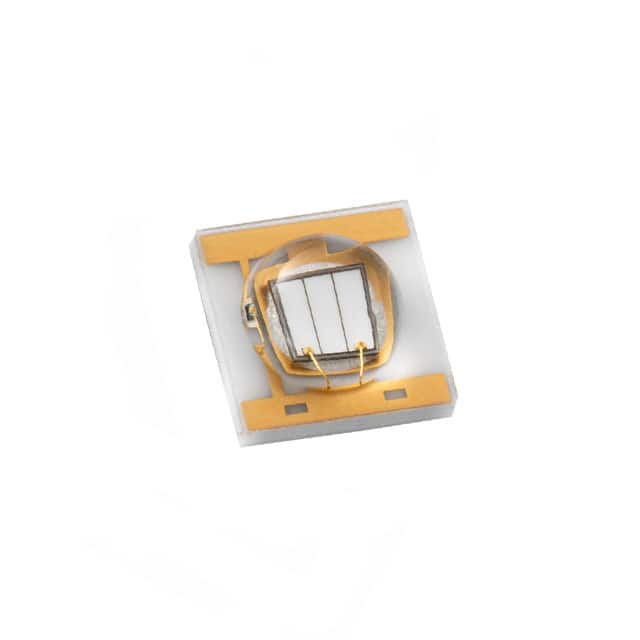

LED UV 385NM 800MA SMD
All alternatives
View full reportTechnical parameters
Key specs
ColorUltraviolet
Wavelength385 nm
Forward voltage3.5 VTyp
Test current800 mA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 800mA |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Other | |
| Mfr | Würth Elektronik |
| Orientation | Top View |
| Product Status | Active |
| Radiant Intensity (Ie) Min @ If | - |
| Series | WL-SUMW |
| Type | Ultraviolet (UV) |
| Viewing Angle | 130° |
| Wavelength | 385nm |
