Würth ElektronikGermany

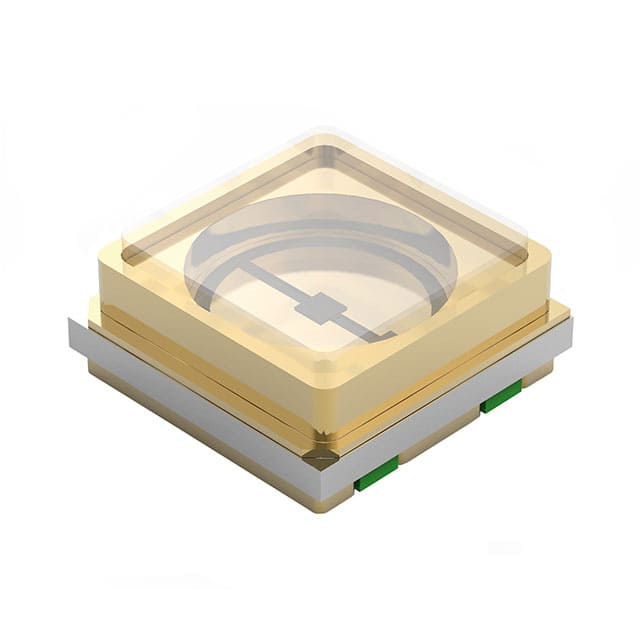

WL-SUMW SMT ULTRAVIOLET CERAMIC
All alternatives
View full reportTechnical parameters
Key specs
ColorUltraviolet
Wavelength275 nm
Forward voltage6.5 VTyp
Test current30 mA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 30mA |
| Voltage - Forward (Vf) (Typ) | 6.5V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -30°C~60°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 2-SMD, No Lead |
| Other | |
| Mfr | Würth Elektronik |
| Orientation | Top View |
| Product Status | Active |
| Radiant Intensity (Ie) Min @ If | - |
| Series | WL-SUMW |
| Type | Ultraviolet (UV) |
| Viewing Angle | 120° |
| Wavelength | 275nm |
