Keystone ElectronicsUnited States

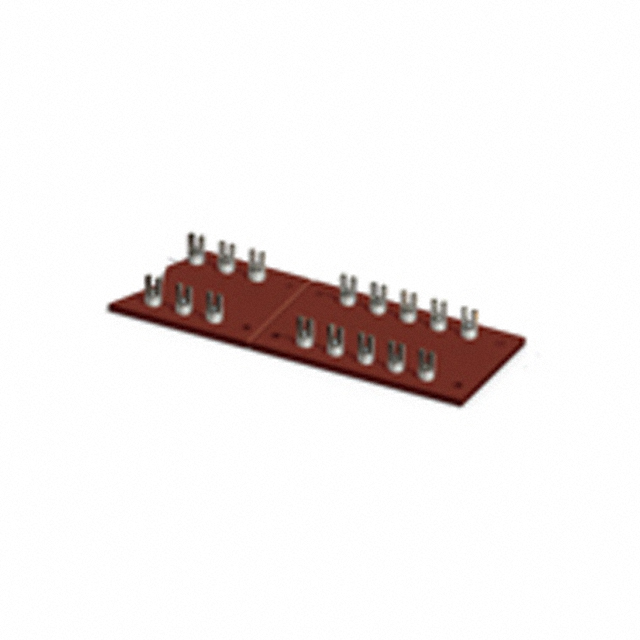

TURRET BOARD 50POS 0.375" FORK
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Board Size | 13.125" L x 2.000" W x 0.093" H (333.38mm x 50.80mm x 2.36mm) |
| Mounting Hole Diameter | 0.120" (3.05mm) |
| Package | Bulk |
| Other | |
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | Standard Strip |
| Material - Board | XP Phenolic |
| Material Flammability Rating | - |
| Mfr | Keystone Electronics |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch | 0.375" (9.53mm) |
| Product Status | Obsolete |
| Row Spacing | 1.500" (38.10mm) |
| Series | - |
| Terminal Type | Turret, Fork End, Hollow |
| Type | Turret Board, Scored |
