Cornell Dubilier Electronics (CDE)United States

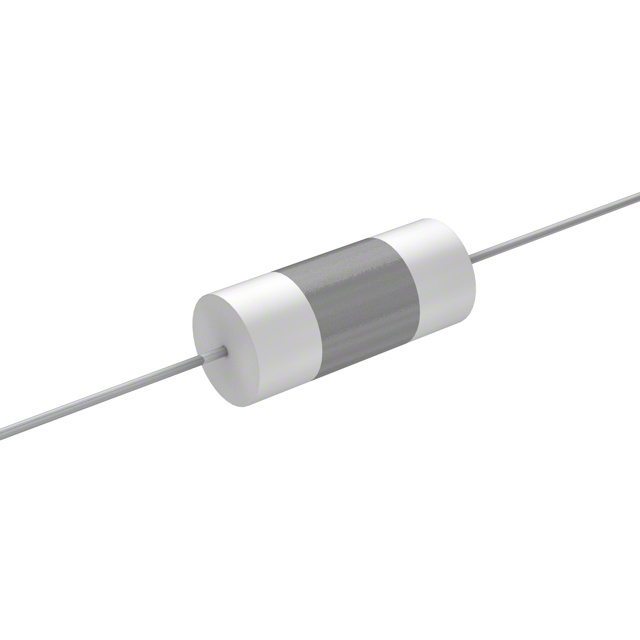

CAP FILM 0.047UF 400VDC AXIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance47 nF
Rated voltage400 V
Tolerance10 %
| Power | |
|---|---|
| Voltage Rating - AC | 200V |
| Voltage Rating - DC | 400V |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~125°C |
| Package | Bulk |
| Package / Case | Axial |
| Size / Dimension | 0.276" Dia x 0.650" L (7.00mm x 16.50mm) |
| Other | |
| Applications | General Purpose |
| Capacitance | 0.047 µF |
| Dielectric Material | Polyester, Metallized |
| Features | - |
| Lead Spacing | - |
| Mfr | Cornell Dubilier Electronics (CDE) |
| Product Status | Active |
| Ratings | - |
| Series | 150 |
| Termination | PC Pins |
| Tolerance | ±10% |
Documents
No documents are linked to this part yet.
