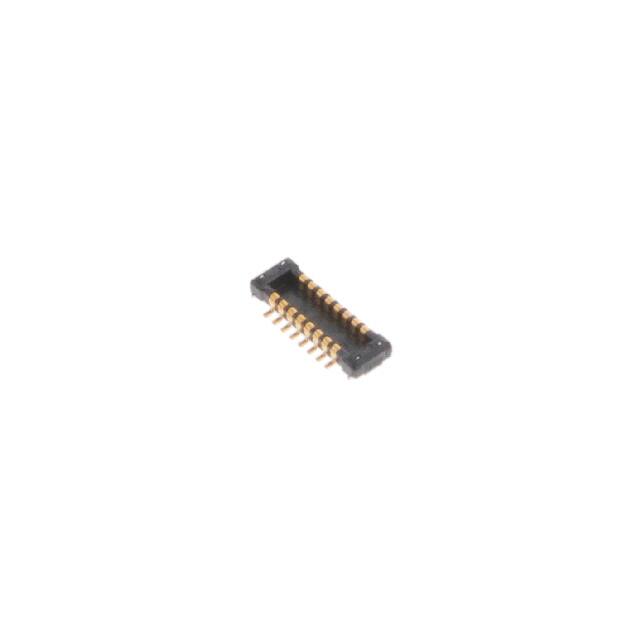

145843016022829+
KYOCERA AVXJapan

145843016022829+

ActiveArrays, Edge Type, Mezzanine (Board to Board)

PLUG - 0.35MM PITCH - 16 POS

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Positions16
Rows2
Pitch350 µm
GenderMale
Environment and package
Height Above Board0.026" (0.65mm)
Mated Stacking Heights0.8mm, 1mm, 1.5mm
Mounting TypeSurface Mount
PackageTape & Reel (TR); Cut Tape (CT); Digi-Reel®
Other
Base Product Number145843
Connector TypePlug, Outer Shroud Contacts
Contact FinishGold
Contact Finish Thickness-
FeaturesPick and Place, Solder Retention
MfrKYOCERA AVX
Number of Positions16
Number of Rows2
Pitch0.014" (0.35mm)
Product StatusActive
Series5843, Kyocera

Documents

No documents are linked to this part yet.
