Phoenix ContactGermany

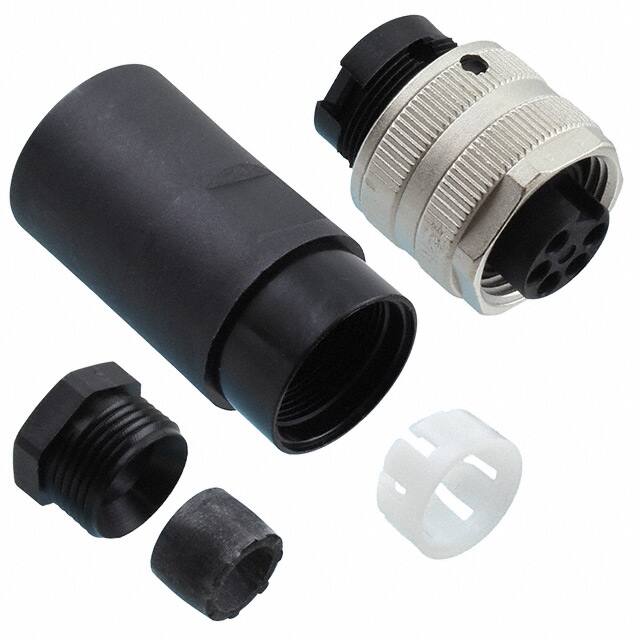

CONN RCPT FMALE 5POS GOLD SCREW
All alternatives
View full reportTechnical parameters
Key specs
Positions5
GenderFemale
Current rating9 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 9A |
| Voltage Rating | 300V |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -25°C~85°C |
| Package | Bulk |
| Shell Size - Insert | 7/8"-5 |
| Shell Size, MIL | - |
| Other | |
| Applications | - |
| Backshell Material, Plating | Polybutylene Terephthalate (PBT) |
| Cable Opening | 0.315" ~ 0.394" (8.00mm ~ 10.00mm) |
| Color | Black, Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Material | Copper Zinc |
| Fastening Type | Threaded |
| Features | Backshell, Coupling Nut |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 and Polyurethane (PUR) |
| Material Flammability Rating | UL94 HB |
| Mfr | Phoenix Contact |
| Number of Positions | 5 |
| Orientation | A |
| Primary Material | Metal |
| Product Status | Active |
| Series | SACC |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shielding | - |
| Termination | Screw |
Documents
No documents are linked to this part yet.
