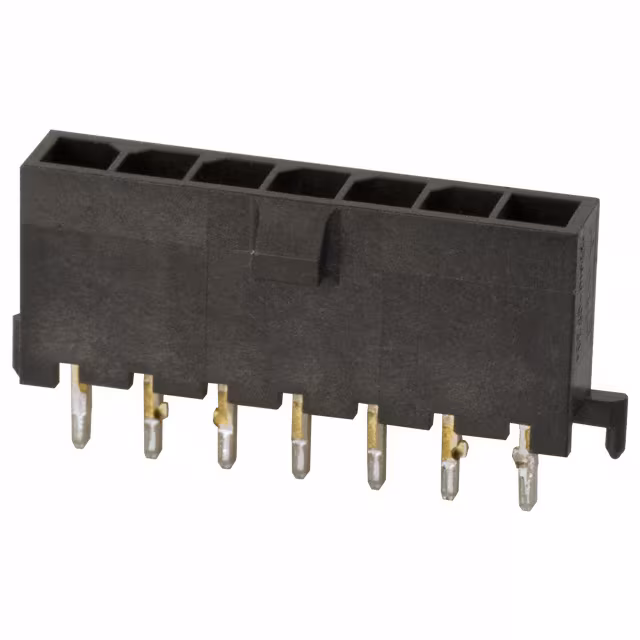

CONN HEADER VERT 7POS 3MM
All alternatives
View full reportTechnical parameters
Key specs
Positions7
Rows1
Pitch3 mm
GenderMale
| Power | |
|---|---|
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 250V |
| Environment and package | |
| Insulation Height | 0.364" (9.25mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~105°C |
| Package | Tray |
| Other | |
| Applications | General Purpose |
| Base Product Number | 1445050 |
| Connector Type | Header |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Length - Mating | - |
| Contact Length - Post | 0.125" (3.18mm) |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | Board Guide |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Overall Contact Length | - |
| Pitch - Mating | 0.118" (3.00mm) |
| Product Status | Obsolete |
| Row Spacing - Mating | - |
| Series | Micro MATE-N-LOK |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Press-Fit, Solder |
