Keystone ElectronicsUnited States

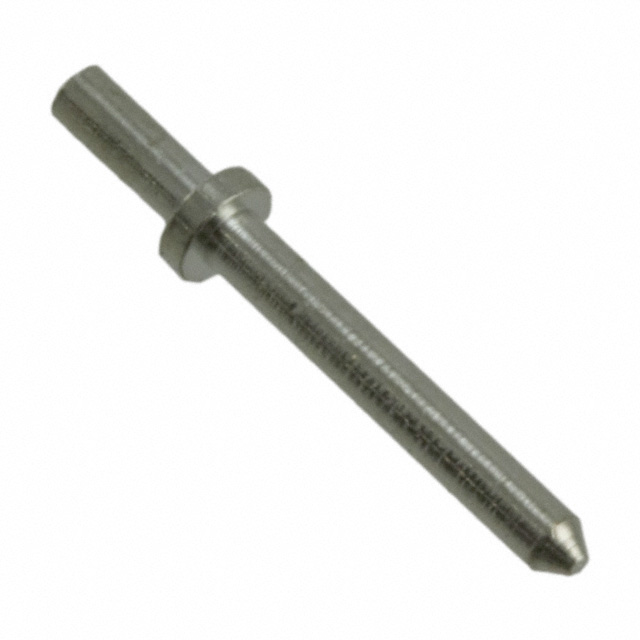

CONN PC PIN CIRC 0.040DIA TIN
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Hole Diameter | 0.043" (1.09mm) |
| Mounting Type | Through Hole |
| Package | Bulk |
| Pin Size - Above Flange | 0.040" (1.02mm) Dia |
| Pin Size - Below Flange | - |
| Other | |
| Board Thickness | 0.093" (2.36mm) |
| Contact Finish | Tin |
| Contact Finish Thickness | 200.0µin (5.08µm) |
| Contact Material | Brass |
| Flange Diameter | 0.070" (1.77mm) |
| Insulation | Non-Insulated |
| Insulation Color | - |
| Length - Above Flange | 0.300" (7.62mm) |
| Length - Below Flange | 0.113" (2.87mm) |
| Length - Overall | 0.433" (11.00mm) |
| Material - Insulation | - |
| Mfr | Keystone Electronics |
| Product Status | Active |
| Series | - |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
