AmphenolUnited States

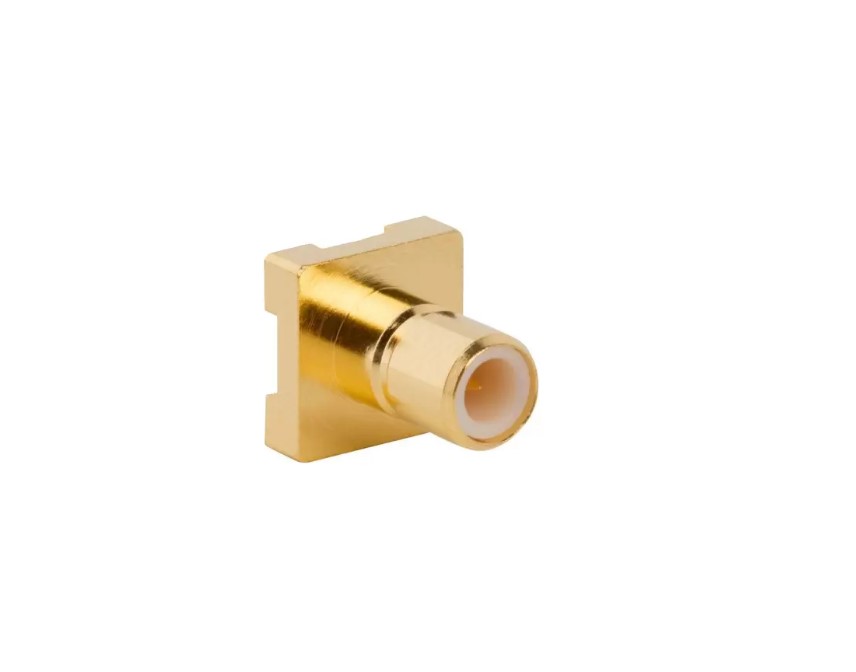

142340
ActiveSMB Straight Crimp Jack RG-8X Times LMR-240 Optimized Bulkhead 50 Ohm
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency (Max GHz) | 4 |
| Impedance (Ohms) | 50 |
| Environment and package | |
| Mil Qualified | Not Mil Qualified |
| Panel Mounting Feature | Bulkhead - Front Mount |
| Size Category | Subminiature |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Other | |
| Applications | Tamper Resistant |
| Attributes | Applications |
| Body Finish | Gold |
| Body Material | Brass |
| California Prop 65 | California Residents see Prop 65 Warning |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Country of Origin | CN |
| Coupling Mechanism | Push-on |
| Details | Tamper Resistant |
| Document Title | 142340 PDF Customer Drawing (Size: 69.7 KB) |
| ECCN | EAR99 |
| Gender | Jack |
| HTS Code | 8536.69.4010 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Isolated | No |
| Low PIM | No |
| Mating Cycles (Min) | 500 |
| Non Magnetic | Contains Magnetic Materials |
| Orientation | Straight |
| PFAS | Contains PFAS |
| Ports | 1 (Single Port) |
| Publish Date | 5/7/2026 |
| Status | Under Review |
| Termination Style | Solder Cup |
| Thread Direction | Standard |
| Type | |
