1324C

Active

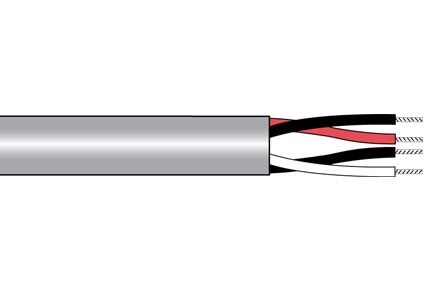

Alpha Wire 22 AWG, 11 Pair Communication Cable provides precise signal transmission for computer and control applications

All alternatives

Power
1) Voltage Rating	300 V RMS
AC and DC characteristics
3) Characteristic Impedance	80 Ω
Environment and package
1) Temperature Range	-20 to 80°C
Other
(1) Color Code	Alpha Wire Color Code A
1) Component 1	11 x 1 PAIR
(1) Twists	8.0 Twists/foot (min.)
2) Bend Radius	10X Cable Diameter
2) Cable Assembly	11 Components Cabled
2) Mutual Capacitance	22.8 pF/ft @1 kHz, Nominal
3) California Proposition 65	This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more detail.
3) CE	EU Low Voltage Directive 2014/35/EU
3) Pull Tension	121 lbs, max.
4) Inductance	0.18 μH/ft, Nominal
5) Conductor DCR	16.6 Ω/1000ft @20°C, Nominal
80°C / 150 V RMS	75°C
a) 1000 FT	20 x 11 x 8 Continuous length
a) Color(s)	SLATE
a) Twists	2.5 Twists/foot (min)
AWM/STYLE 2576	CM
b) 500 FT	18 x 9 x 8 Continuous length
b) Orientation	Components to be arranged from INSIDE LAYER-to-OUTSIDE LAYER
b) Print	*ALPHA WIRE- P/N 1324C 11PR 22 AWG 75C (UL) TYPE CM OR AWM 2576 --- LLXXXXXX CSA TYPE CMG FT4 CE ROHS * = Factory Code Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.**
c) Core Wrap	Clear Mylar Tape, 25% Overlap, (min.)
CM	75°C
Color	BLACK-RED
c) Pair	2/Cond Cabled Together
Electrical Properties	(For Engineering purposes only)
Packaging	Flange x Traverse x Barrel (inches)
Pair	1
