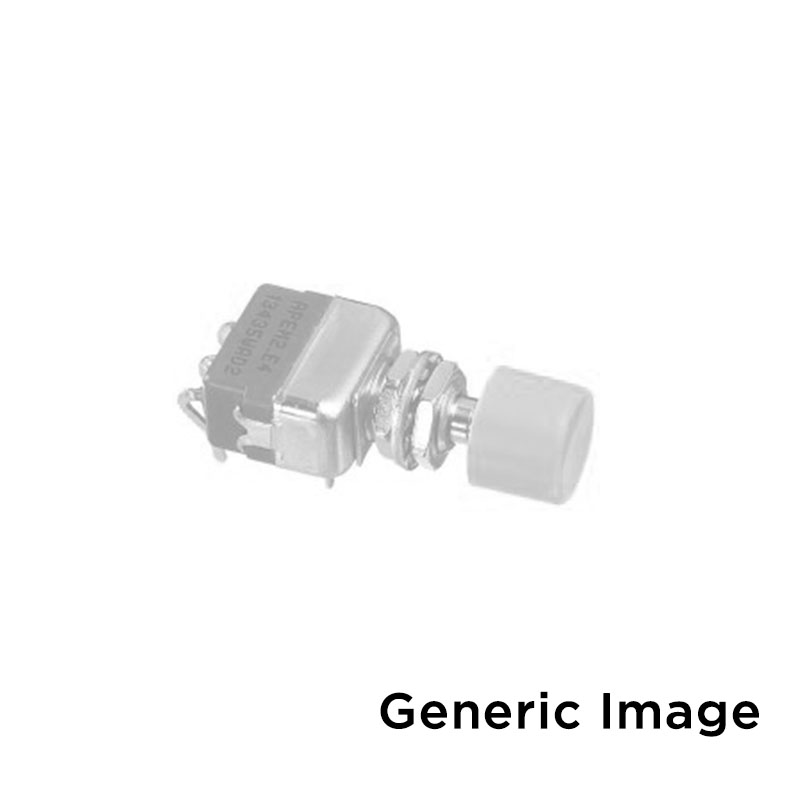

The 13245WCD-9 Panel Switch features a double pole design for efficient control of lighting and motors. Its sleek, durable construction adds elegance to any system.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Max. current/voltage rating with resistive load | - silver contacts (A-AD2) : 4 A 30 VDC- gold plated contacts (CD) : 100 mA 30 V |
| Environment and package | |
| Operating temperature | -40 °C to +85 °C |
| Other | |
| Approvals | No Agency Approval Required |
| Contact bounce | 2 ms max. |
| Contact Materials | Brass (Gold-Plated) |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame |
| Electrical Functions | ON |
| Finish | Brass (Nickel-Plated) |
| Initial contact resistance | 10 mΩ max. |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Minimum load (AD2-CD contacts) | 10 mA 50 mV, 10 μA 5 V min. |
| Number Of Poles | Double Pole |
| Plungers | 9 mm (0.354in) long |
| Sealing | Epoxy Sealed Terminals |
| Special Options | No Special Requirement |
| Standard panel thickness | 2 mm (.078 ) max. |
| Terminals | Right Angle Horizontal |
| Terminals And Bushing | Straight PC |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut |
| Total travel | 2 mm (.078) |
