AmphenolUnited States

132193

ActiveCoaxial Connector (RF) Assemblies

CONN SMA PLUG STR 50 OHM SOLDER

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Connector styleSMA
GenderMale
Impedance50 Ω
Max frequency12.4 GHzMax
AC and DC characteristics
Frequency - Max12.4 GHz
Impedance50Ohm
Environment and package
Mounting Feature-
Mounting TypeFree Hanging (In-Line)
Operating Temperature-65°C~165°C
PackageBag
Other
Base Product Number1321
Body FinishGold
Body MaterialBrass
Cable GroupRG-178, 178A, 178B, 196, 196A, M17/93-RG178
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleSMA
Connector TypePlug, Male Pin
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeThreaded
Features-
Housing ColorGold

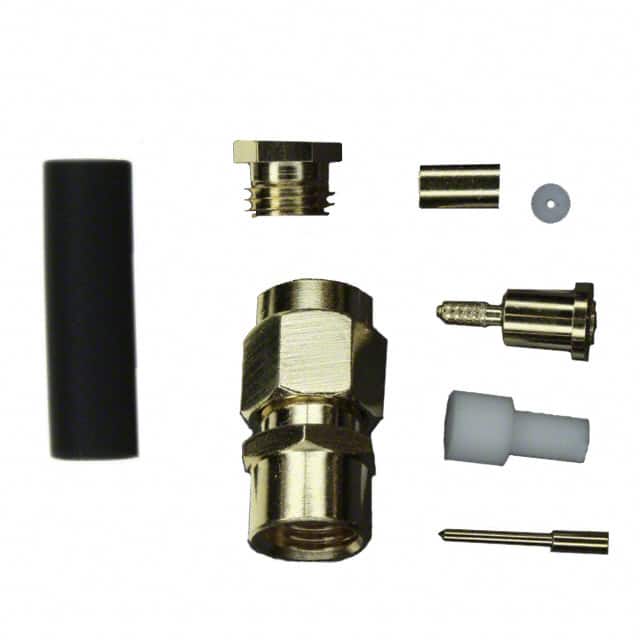

Includes8 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 2 Insulators, 1 Nut, 1 Rear Body
Ingress ProtectionWeatherproof
Insertion Loss-
Mating Cycles500
MfrAmphenol RF
Number of Ports1
Product StatusActive
Series-
Shield TerminationCrimp
