AmphenolUnited States

132176

ActiveCoaxial Connector (RF) Assemblies

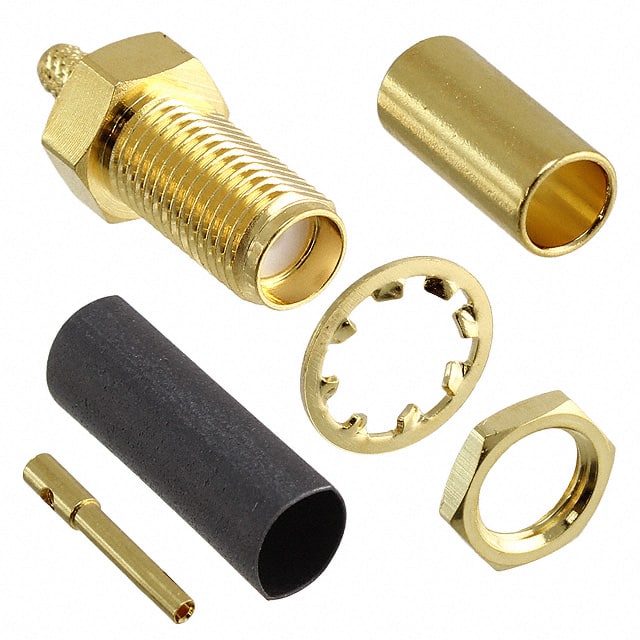

CONN SMA JACK STR 50 OHM SOLDER

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Connector styleSMA
GenderFemale
Impedance50 Ω
Max frequency12.4 GHzMax
Power
Voltage Rating375 V
AC and DC characteristics
Frequency - Max12.4 GHz
Impedance50Ohm
Environment and package
Mounting FeatureBulkhead - Front Side Nut
Mounting TypePanel Mount
Operating Temperature-65°C~165°C
PackageBag
Other
Base Product Number1321
Body FinishGold
Body MaterialBrass
Cable GroupRG-179, 188, 316 Double Braid, M17/152-RD316
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleSMA
Connector TypeJack, Female Socket
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeThreaded
Features-
Housing ColorGold
Includes6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut
Ingress ProtectionWeatherproof
Insertion Loss-
Mating Cycles500
MfrAmphenol RF
Number of Ports1
Product StatusActive
Series-
Shield TerminationCrimp
