132136-13
AmphenolUnited States

132136-13

Active

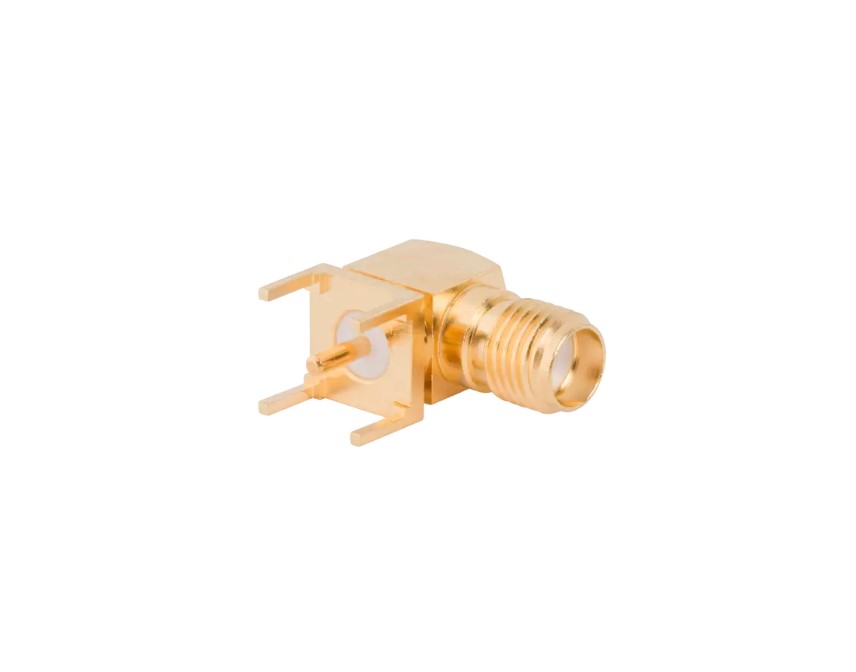

SMA PCB Through Hole Right Angle Jack 50 Ohm

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

AC and DC characteristics
Impedance (Ohms)50
Environment and package
Mil QualifiedNot Mil Qualified
Panel Mounting FeatureNot Applicable
Size CategorySubminiature
Temp (Min Degrees Celsius)-65
Other
AttributesBody Finish
Body FinishGold
Body MaterialBrass
Contact FinishGold
Contact MaterialBeryllium Copper
Contact TerminationSolder
Country of OriginUS
Coupling MechanismThreaded
DetailsGold
Document Title132136-13 PDF Customer Drawing (Size: 37.4 KB)
ECCNEAR99
GenderJack
HTS Code8536.69.4010
Insulator MaterialPTFE
IP RatingNot Rated
IsolatedNo
Low PIMNo
Mating Cycles (Min)500
Non MagneticContains Magnetic Materials
OrientationRight Angle
PFASContains PFAS
Ports1 (Single Port)
Publish Date5/7/2026
Termination StylePCB - Through Hole
Thread DirectionStandard
Typepdf
