1313C

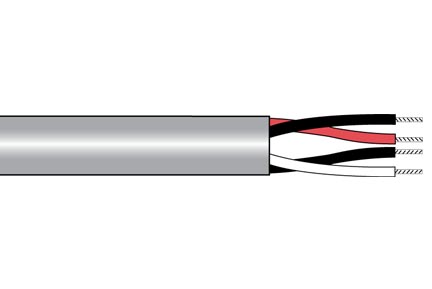

ActiveAlpha Wire 22 AWG, 27 Pair communication cable provides precise signal transmission for computer and control applications
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 300 V RMS |
| AC and DC characteristics | |
| 3) Characteristic Impedance | 81 Ω |
| Environment and package | |
| 1) Temperature Range | -20 to 80°C |
| Other | |
| (1) Color Code | Alpha Wire Color Code A |
| 1) Component 1 | 27 x 1 PAIR |
| (1) Twists | 9.6 Twists/foot (min.) |
| 2) Bend Radius | 10X Cable Diameter |
| 2) Cable Assembly | 27 Components Cabled |
| 2) Mutual Capacitance | 22.6 pF/ft @1 kHz, Nominal |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more detail. |
| 3) CE | EU Low Voltage Directive 2014/35/EU |
| 3) Pull Tension | 271 lbs., maximum |
| 4) Inductance | 0.19 μH/ft, Nominal |
| 5) Conductor DCR | 17.3 Ω/1000ft @20°C, Nominal |
| 80°C / 150 V RMS | 75°C |
| a) 1000 FT | 30 x 14 x 12 Continuous length |
| a) Color(s) | SLATE |
| a) Twists | 1.8 Twists/foot (min.) |
| AWM/STYLE 2576 | CM |
| b) Orientation | Components to be arranged from INSIDE LAYER-to-OUTSIDE LAYER |
| b) Print | ALPHA WIRE-* P/N 1313C 27PR 22 AWG 75C (UL) TYPE CM OR AWM 2576 --- LLXXXXXX CSA TYPE CMG FT4 CE ROHS * = Factory Code Note: Product may have c(UL) or CSA markings depending upon plant of manufacture. |
| c) Core Wrap | Clear Mylar Tape, 25% Overlap, min. |
| CM | 75°C |
| Color | BLACK-RED |
| c) Pair | 2/Cond Cabled Together |
| Electrical Properties | (For Engineering purposes only ) |
| Packaging | Flange x Traverse x Barrel (inches) |
| Pair | 1 |
