Global SpecialtiesUnited States

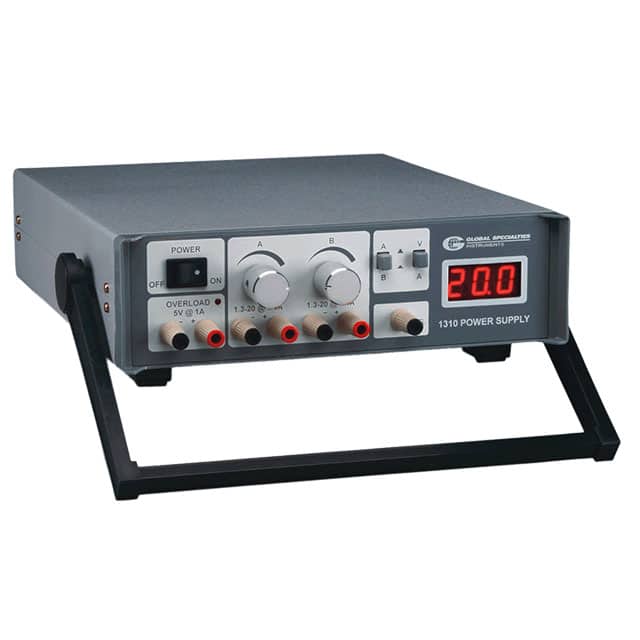

TRIPLE OUTPUT DC POWER SUPPLY
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output | 250mA, 250mA, 1A |
| Power (Watts) | - |
| Voltage - Output | 1.3 ~ 20VDC, 1.3 ~ 20VDC, 5VDC |
| Voltage - Supply | 108 ~ 250VAC |
| AC and DC characteristics | |
| Accuracy - Voltmeter; Ammeter | 0.5% + 1 digit |
| Current Regulation - Line | 0.1% + 1mA, 0.2% + 1mA (3rd Output) |
| Current Regulation - Load | 0.2% + 1mA, 1% + 1mA (3rd Output) |
| Ripple | 10mV rms |
| Voltage Regulation - Line | 0.1% + 100mV, 0.2% + 100mV (3rd Output) |
| Voltage Regulation - Load | 0.2% + 100mV, 1% + 100mV (3rd Output) |
| Environment and package | |
| Package | Bulk |
| Size / Dimension | 12.677" L x 10.433" W x 2.756" H (322.00mm x 265.00mm x 70.00mm) |
| Other | |
| Display Type | LED |
| Features | Regulated, Series and Parallel Modes |
| Mfr | Global Specialties |
| Number of Characters | 3 |
| Number of Outputs | 3 |
| Product Status | Obsolete |
| Series | - |
| Type | Bench (AC to DC) |
| Weight | 6 lbs (2.7 kg) |
