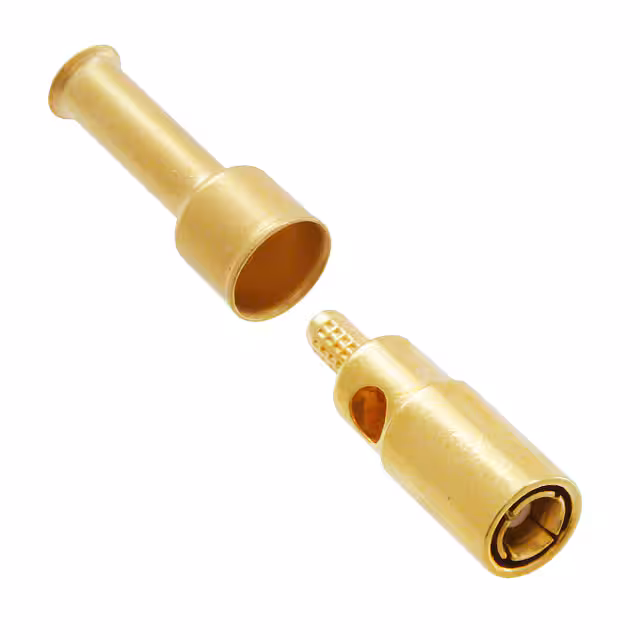

131-1403-001
Cinch Connectivity Solutions JohnsonUnited States

131-1403-001

ObsoleteCoaxial Connector (RF) Assemblies

CONN SMB PLUG STR 50OHM SOLDER

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Connector styleSMB
GenderFemale
Impedance50 Ω
Max frequency4 GHzMax
Power
Voltage Rating335 V
AC and DC characteristics
Frequency - Max4 GHz
Impedance50Ohm
Environment and package
Mounting Feature-
Mounting TypeFree Hanging (In-Line)
Operating Temperature-65°C~165°C
PackageBulk
Other
Base Product Number131-1403
Body FinishGold
Body MaterialZinc
Cable GroupRG-161, 174, 179, 187, 188, 316
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleSMB
Connector TypePlug, Female Socket
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On
Features-
Housing ColorGold
Includes2 pcs - 1 Connector, 1 Sleeve
Ingress Protection-
Insertion Loss0.3dB
Mating Cycles500
MfrCinch Connectivity Solutions Johnson
Number of Ports1
Product StatusObsolete
Series-
Shield TerminationCrimp
